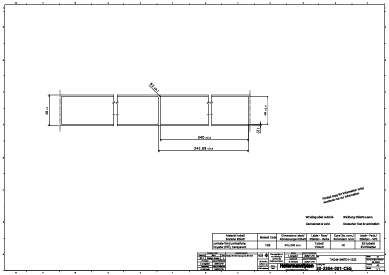

Protective laminate HELATAG, transparent, 340.00x44.00mm, 350pcs.
Art.-No. 596-12322
| TAG44-340TD1-1232-CL
|
Copied
- High-quality labels made of polyester
- Suitable for marking of wires and cables in harsh environments as well as a protective laminate or a printed label
- Flexible but also tear and impact resistant material
- Excellent resistance to alcohol, gasoline, cleaning agents and hydraulic oils
- Very temperature and UV-resistant
- Rounded edge design gives additional bonding strength
More products in this product group:

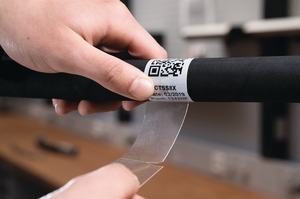

| Application | Protective laminates are used for the additional protection of printed type labels, for example in hydraulic hoses and for other outdoor installations. Due to its flexibility of the material, Helatag 1232 also can be used for marking or protection of labels on cables and wires. The protective laminates are also used if the contours of a label, for example on glass surfaces or backlit objects, should not be visible (no-label look). |
| Application Method | The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance. |
| Chem. Material Properties | Resistant to water, alcohol, gasoline, cleaning solutions and hydraulic oils. |
| Colour | Transparent (CL) |
| Material | Type 1232, Polyester, white transparent, self-laminating (1232) |
| Mech. material properties | Due to its flexibility particularly suitable for the protection of labels on cables. |
| PART DESCRIPTION | TAG44-340TD1-1232-CL |
| Package Content | 350pcs. |
| Package Content packed in | reel |
| Print Method | thermal transfer print |
| Product Family | Helatag 1232 |
| Product Group | Protective laminates, thermal transfer |
| Self adhesive (Yes/No) | Yes |
| Type | TAG44-340TD1 |
| UV-Stabilised | Yes |
| Variant | Roller form |
| Weight/Unit | 0.001611kg |
Download
| Adhesive | Acrylic |
| Curing Temperature | from +2 °C |
| ELV compliant (Article 4 - 2) | YES |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +150 °C |
| Pre-Printed | No |
| ROHS compliant | Yes |
| Resistance to | Brake cleaner: 720h (at room temperature), Alcohol 94%: 720h (at room temperature), Hydraulic oil: 720h (at room temperature) |
| Specifications |
|
|
|
|
| Country of Origin | GB |
| Customs Number | 39199080 |
| GTIN-13 / EAN | 4031026660370 |
| Labels per Column | 1 |
| Packaging 1 - Height (m) | 0.05m |
| Packaging 1 - Length (m) | 0.15m |
| Packaging 1 - Qty | 350 |
| Packaging 1 - Type | box |
| Packaging 1 - Volume (m³) | 0.001125m³ |
| Packaging 1 - Weight (kg) | 0.88885kg |
| Packaging 1 - Width (m) | 0.15m |
| Packaging 3 - Height (m) | 0.25m |
| Packaging 3 - Length (m) | 0.33m |
| Packaging 3 - Qty | 2800 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0198m³ |
| Packaging 3 - Weight (kg) | 7.4358kg |
| Packaging 3 - Width (m) | 0.24m |
| Packaging 4 - Height (m) | 1.144m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 112000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.098m³ |
| Packaging 4 - Weight (kg) | 318.432kg |
| Packaging 4 - Width (m) | 0.8m |
