10/11/2024

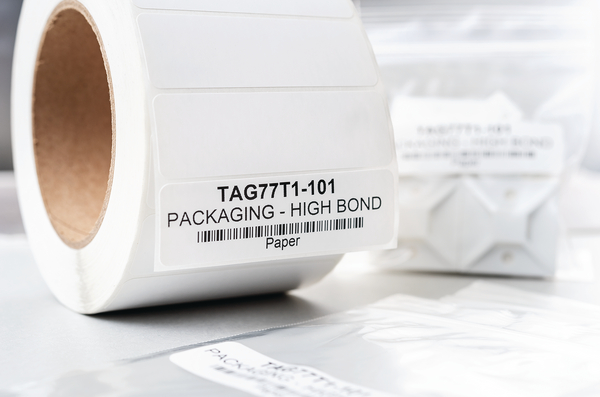

Label, weather resistant/chemical resistance, white, thermal transfer print, 76.2x76.2mm, H2=79.20mm, 2000pcs.
Art.-No. 596-00020 | TAG77T1-101-WH |  Details

    • Very clear and detailed image for use with graphics, single or sequential characters and especially barcodes
    • Smear-resistant, ultraviolet-resistant and chemical-resistant marking
    Add to watchlist
    Downloads
    Application For Flat Surfaces Only
    Colour White (WH)
    Key product features weather resistant, chemical resistance
    Material Type 101, Vinyl, white transparent, self-laminating (101)
    PART DESCRIPTION TAG77T1-101-WH
    Pack Cont. 2000pcs.
    Package Content packed in reel
    Product Family Thermal Transfer Labels
    Product Group Adhesive Labels
    Type TAG77T1
    H printable 76.2mm
    HR 76.2mm
    HR 3.0"
    Height (H) 76.2mm
    Height (H2) 79.20mm
    Print Method thermal transfer print
    Thickness (T) 64.0µm
    VR 25.4mm
    VR 1.0"
    Width (W) 76.2mm
    Width of LIner (WL) 3.12"
    Width of Liner (WL) 79.2mm
    Adhesive Acrylic
    Adhesive Operating Temperature -40 °C to +90 °C, (+160 °C, for 200 h)
    CE Certification No
    CSA Certified No
    Halogen-free No
    Operating Temperature -54 °C to +93 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026727127
    Labels per Row 1
    Packaging 1 - Weight (kg) 0.68kg
    ETIM 7.0 Key EC001288
    ETIM 8.0 Key EC001288
    ETIM 9.0 Key EC001288
    UNSPSC Key 55121612
