WDCCU-443/552-OG : WDCCU

Article number: 596-00588

Features

  • Made with UV-stable inks and materials for durability and weather resistance
  • Supplied with an aggressive adhesive to ensure long life
  • Meets NEC & IFC standards for printed text, character height, color and outdoor UV stability to pass inspections
  • Offer significant time and cost savings over high priced plastic engraved phenolic placards and lead time purchased markers

Certifications & Approvals

Application

For use anywhere for ungrounded circuits

Colour Orange (OG)
Colour of Print Black (BK)
Features and Benefits Eliminate the need to have custom and expensive engraved plates ordered for each installation. Carry your own labels for use, on demand, at each installation while being assured of high performance, long lasting, outdoor durability while meeting all applicable local labeling requirements.
Pack Cont. 50
Package Quantity per roll
PART DESCRIPTION WDCCU-443/552-OG
Short Description Solar Label, Warning - DC Conductors Energized Label, 4.12" X 2.0", Orange/White, 50/RL

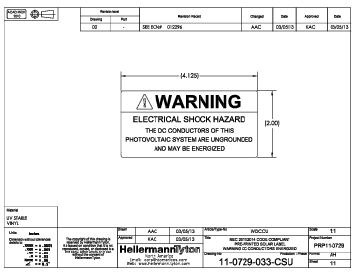

Technical Description 4.12" X 2" Black text on Orange/White background that reads as: "WARNING - ELECTRICAL SHOCK HAZARD. THE DC CONDUCTORS OF THIS PHOTOVOLTAIC SYSTEM ARE UNGROUNDED AND MAY BE ENERGIZED" - 50 per roll.
Height (H) 50.8mm
Length (L) 104.6mm
Thickness (T) 64.0µm
Width (W) 104.6mm
Adhesive Acrylic
Adhesive Operating Temperature -40 °C to +79 °C
CSA Certified No
Curing Temperature +10 °C
Halogenfree No
Material Type 443/552, UV Stable Flexible White Vinyl with Acrylic Laminate
Operating Temperature - °C -40 °C to +79 °C
Specifications
Specifications NEC2014, UL 969
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL-File Number MH11410
EAN / GTIN 4031026468303
Labels per Column 1
Labels per Row 1
Packaging 1 - Weight (kg) 0.521kg
Weight 1.12lbs
Weight 0.521kg
ETIM 6.0 EC001530
ETIM 7.0 Key EC001530
UNSPSC Key 55121606
