Solar label, pre-printed, orange, 50.8x95.25mm, 50pcs.
Art.-No. 596-00497 | WESHLBL-443/281-OG |

Application	For use on AC Disconnect and Net Meter
Application Method	Labels are applied by hand to PV installations where durable UV resistant marking is required.
Colour	Orange (OG)
Colour of Print	Black (BK)
Key product features	pre-printed, chemical resistance, outdoor use, UV resistant
Material	Type 443/281, UV-stabilised, flexible white vinyl with clear polyester laminate (443/281)
PART DESCRIPTION	WESHLBL-443/281-OG
Package Content	50pcs.
Package Content packed in	pack

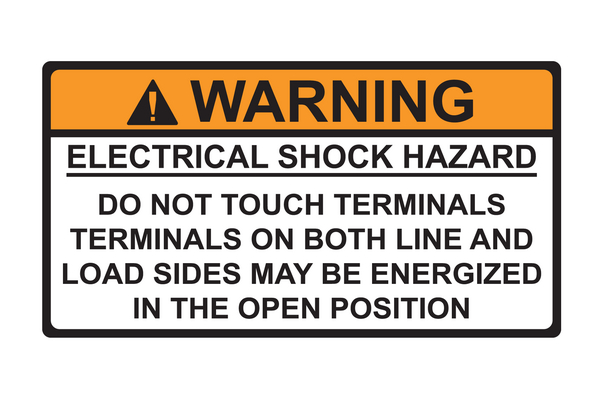

Technical Description	3.75" X 2" Black text on an Orange/White background that reads as: "WARNING - ELECTRICAL SHOCK HAZARD. DO NOT TOUCH TERMINALS. TERMINALS ON BOTH LINE AND LOAD SIDE MAY BE ENERGIZED IN THE OPEN POSITION." - 50 per roll.
Type	WESHLBL
UV-Stabilised	Yes

Adhesive	Acrylic
Adhesive Operating Temperature	-40 °C to +79 °C
CE Certification	No
CSA Certified	No
Curing Temperature	+10 °C
Halogen-free	No
Operating Temperature	-40 °C to +79 °C
Pre-Printed	Yes
ROHS compliant	Yes
Specifications
Specifications	NEC2014, UL 969
UL Listed (US and Canada)	No
UL Listed (US and Canada)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	Yes
UL-File Number	MH11410
