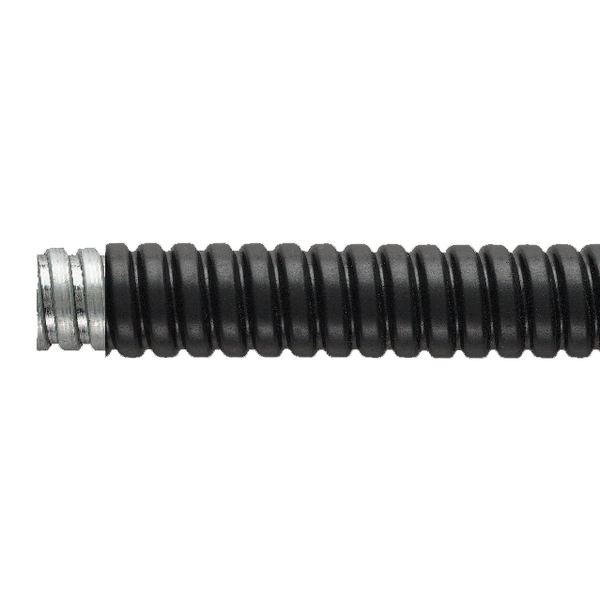

FPU40B-10M-GS/PUR-BK
Art.-No. 166-90674 | FPU40B-10M-GS/PUR-BK |

Copied
Halogen Free.

    Add to watchlist
    Downloads
    Colour Black (BK)
    Material Galvanised Steel (GS), Polyurethane resin (PUR)
    PART DESCRIPTION FPU40B-10M-GS/PUR-BK
    Pack Cont. 10.0m
    Package Content packed in reel
    Type FPU40B-10M
    ⌀ D 1.48"
    Bending Radius min. (BR) 3.15"
    Bending Radius min. (R) 80mm
    Diameter (D) 37.6mm
    Nominal ⌀ 1.25"
    Nominal ⌀ 40.0mm
    Outside ⌀ (OD) 44.5mm
    Outside ⌀ (OD) 1.75"
    Weight 885g/m
    CSA Certified No
    Flammability UL 94 V0
    Halogen-free Yes
    Operating Temperature -40 °C to +100 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026561578
    Packaging 1 - Weight (kg) 8.85kg
    Reel Length 32.8ft
    Reel Length 10.0m
    UNSPSC Key 39131706
    Metal conduits Metal conduits

    Metal conduits

    Metal conduits from HellermannTyton: Standard metal conduits, coated metal conduits, liquid tight metal conduits and matching metal conduit fittings. Discover now!
