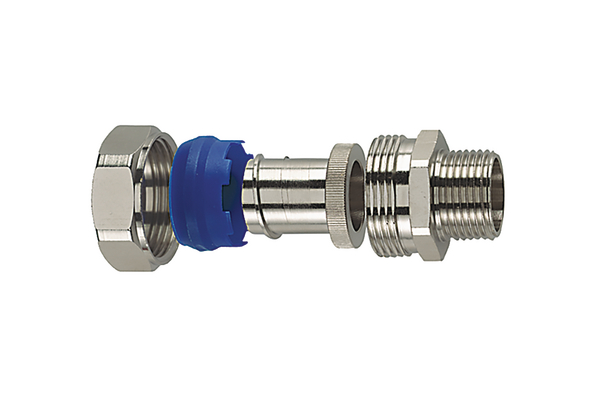

Fittings for Flexible Metallic Conduits with Jacketed Covers
Art.-No. 166-90542 | FSU32-M32-C-NPB/PA6-ML

Nickel plated brass compression fitting used with FSU, LFHU and FPU flexible metallic conduit.
Fitting includes elastomeric sealing washer for IP65 ingress protection.
Suitable for knockouts or NPT / Metric threaded entries as fitting rotates until tightened.

Brand Family	HelaGuard®
Color	Metal (ML)
Description	Multipart straight compression fitting with fixed external thread pattern suitable for threaded or knockout entries. Constructed with nickel plated brass components that resist corrosion, ensures high mechanical strength and electrical continuity. Fitting comprised of body, nut, grounding ferrule and nylon compression seal. For use with FSU, FPU, and LFHU flexible metal conduits.
PART DESCRIPTION	FSU32-M32-C-NPB/PA6-ML
Packaging Type	pack
Part No.	FSU32-M32-C
Short Desc.	Metallic Compression Fitting, Straight, M32 Metric Thread, 1" (32mm) Dia, NPB Metal, 2/pkg
Technical Description	Manufacturer Reference Number: FSU32-M32-C
Type	FSU32-M32-C
UV Resistant	No

CSA Certified	No
Halogen Free	Yes
IP-Rating	IP65
Material	NPB, PA6
Material	Nickel Plated Brass (NPB), Polyamide 6 (PA6)
Operating Temperature	-58°F to +275°F (-50°C to +135°C)
REACH Conformity	Yes
ROHS compliant	Yes
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Pkg. Qty.	2Pieces
Pkg. Qty.	2
