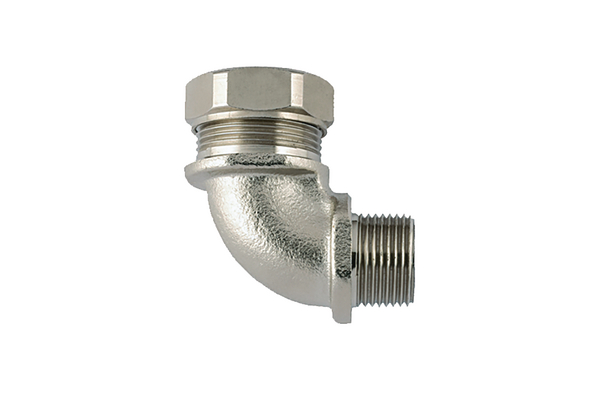

FSU32-M32-C90-NPB/PA6-ML
Art.-No. 166-90516 | FSU32-M32-C90-NPB/PA6-ML |

Copied

    Add to watchlist
    Downloads
    Colour Metal (ML)
    Material Nickel Plated Brass (NPB), Polyamide 6 (PA6)
    PART DESCRIPTION FSU32-M32-C90-NPB/PA6-ML
    Pack Cont. 2pcs.
    Package Content packed in pack
    Thread type metric
    Type FSU32-M32-C90
    Variant 90°-elbow
    Bore Diameter (Imperial) 1.02"
    Bore Diameter (metric) 26.0
    Height (H) 42.0mm
    Length (L) 57.0mm
    Nominal ⌀ 1"
    Nominal ⌀ 32.0mm
    Thread Length (TL) 15mm
    Thread Length (TL) (Imperial) 0.59"
    Thread Size M32
    Thread Size (Imperial) 1-1/2 "
    Wrenching Flat Size (Imperial) 2.24"
    Wrenching Flat Size (Metric) 57.0mm
    CSA Certified No
    Halogen-free Yes
    IP-Rating IP65
    Operating Temperature -50 °C to +135 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026552989
    UNSPSC Key 39131707
