FU40-10M-GS-ML
Art.-No. 166-90757 | FU40-10M-GS-ML |

Copied

    Add to watchlist
    Downloads
    Colour Metal (ML)
    Material Galvanised Steel (GS)

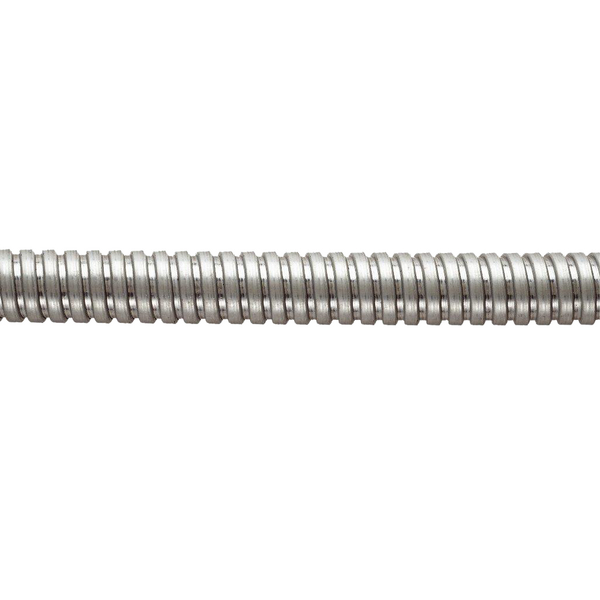

    PART DESCRIPTION FU40-10M-GS-ML
    Pack Cont. 10.0m
    Package Content packed in reel
    Type FU40-10M
    ⌀ D 1.47"
    Bending Radius min. (BR) 3.54"
    Bending Radius min. (R) 80mm
    Diameter (D) 37.3mm
    Nominal ⌀ 1.25"
    Nominal ⌀ 40.0mm
    Outside ⌀ (OD) 42.5mm
    Outside ⌀ (OD) 1.67"
    Weight 885g/m
    CSA Certified No
    Flammability EN IEC 61386-1
    Halogen-free Yes
    Operating Temperature -100 °C to +300 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026570235
    Packaging 1 - Weight (kg) 8.85kg
    Reel Length 32.8ft
    Reel Length 10.0m
    UNSPSC Key 39131706
    Metal conduits Metal conduits

    Metal conduits

    Metal conduits from HellermannTyton: Standard metal conduits, coated metal conduits, liquid tight metal conduits and matching metal conduit fittings. Discover now!
