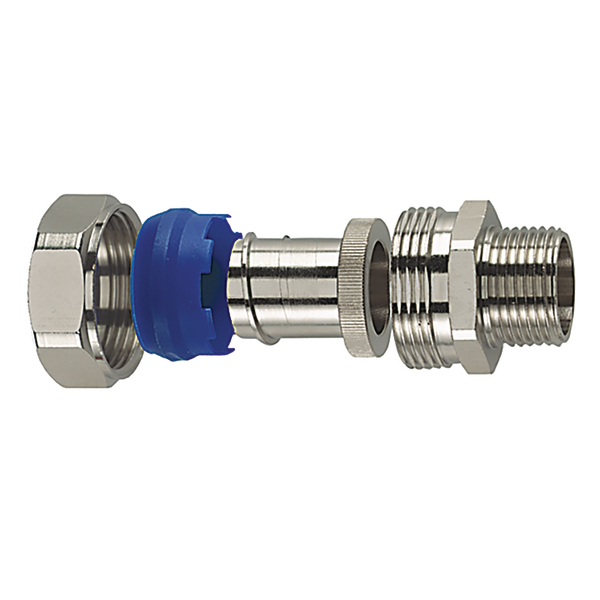

Fittings for LPC Smooth Bore PVC Tubing
Art.-No. 166-90365
| LPC125-S-125-NPB-ML
Copied
- External nickel-plated brass NPT thread provides a durable connection.
- Swivel feature allows fitting to rotate until tightened.
- Metal ferrule insert has shallow & longer scroll for stronger fit with LPC smooth bore PVC tubings.
- IP68 fitting has additional conduit seal for increased protection against wind, dirt and water.
| Brand Family | HelaGuard® |
| Color | Metal (ML) |
| Description | Multi-part metallic straight compression style fitting for use with LPC non metallic PVC tubing. Suitable for NPT threaded entries or knocknuts as fitting rotates until tightened. A longer and shallower scroll allows quick assembly and more durable fit with smooth bore tubing. Provides IP68 and up to IP69 ingress protection. |
| PART DESCRIPTION | LPC125-S-125-NPB-ML |
| Packaging Type | pack |
| Part No. | 166-90365 |
| Short Desc. | Metallic IP68 Compression Fitting, Straight Brass Swivel, 1.25"NPT, 1.25" (40mm) Dia,NPB Metal,2/pkg |
| Type | LPC125-S-125 |
| Bore Diameter (metric) | 32.7 |
| Bore Hole Diameter (imperial) | 1.29" |
| Height (imperial) | 2.05" |
| Height (metric) | 52.0mm |
| Length (imperial) | 1.87" |
| Length (metric) | 47.5mm |
| Length 2 (imperial) | 1.24" |
| Length 2 (metric) | 31.5mm |
| Nominal Diameter (imperial) | 1.25" |
| Nominal Diameter (metric) | 40mm |
| Thread Length (imperial) | 0.63" |
| Thread Length (metric) | 16.0mm |
| Thread Size (imperial) | 1-1/4 " |
| Thread Type | NPT |
| Trade Size | 1-1/4 " |
