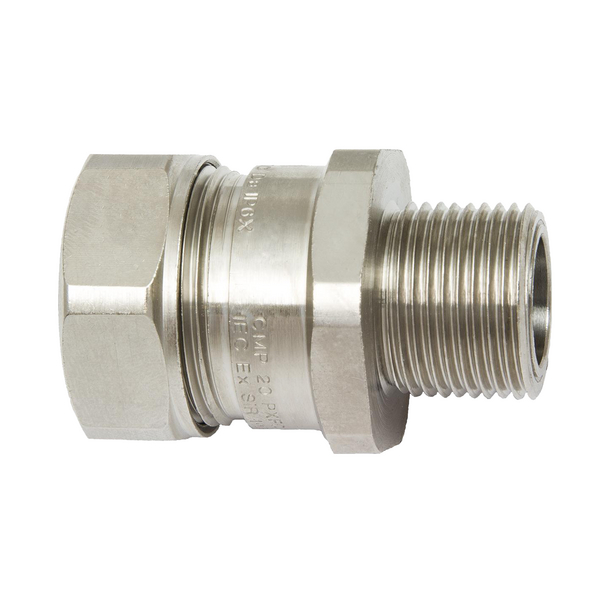

LTP20-M20-EXD-NPB/PA6-ML
Art.-No. 166-90562 | LTP20-M20-EXD-NPB/PA6-ML |

Copied

    Add to watchlist
    Downloads
    Colour Metal (ML)
    Material Nickel Plated Brass (NPB), Polyamide 6 (PA6)
    PART DESCRIPTION LTP20-M20-EXD-NPB/PA6-ML
    Pack Cont. 1pc.
    Package Content packed in pack
    Thread type metric
    Type LTP20-M20-EXD
    Variant Straight
    Bore Diameter (Imperial) 0.51"
    Bore Diameter (metric) 13.0
    Height (H) 29.0mm
    Length (L) 47.0mm
    Nominal ⌀ 0.5"
    Nominal ⌀ 20.0mm
    Thread Length (TL) 15mm
    Thread Length (TL) (Imperial) 0.59"
    Thread Size M20
    Wrenching Flat Size (Imperial) 1.26"
    Wrenching Flat Size (Metric) 32.0mm
    CE Certification No
    CSA Certified No
    Halogen-free Yes
    IP-Rating IP68
    Operating Temperature -60 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026560342
    Packaging 1 - Type pack
    UNSPSC Key 39131707
