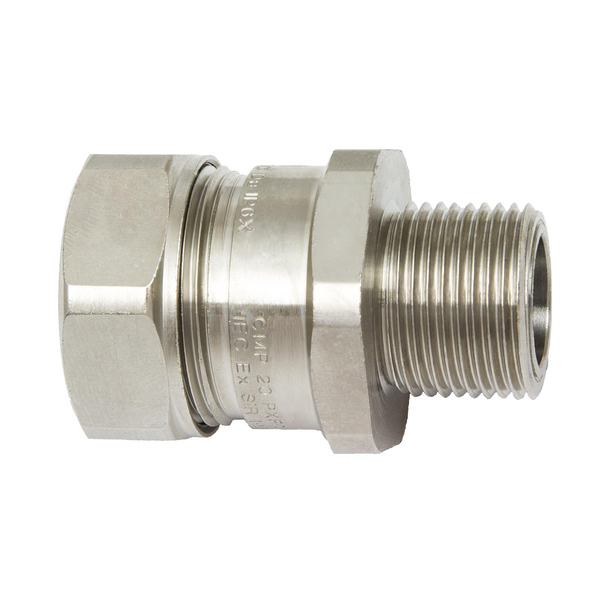

LTP25-075-EXD-NPB/PA6-ML
Art.-No. 166-90570 | LTP25-075-EXD-NPB/PA6-ML |

Copied

    Add to watchlist
    Downloads
    Colour Metal (ML)
    Material Nickel Plated Brass (NPB), Polyamide 6 (PA6)
    PART DESCRIPTION LTP25-075-EXD-NPB/PA6-ML
    Pack Cont. 1pc.
    Package Content packed in pack
    Thread type NPT
    Type LTP25-075-EXD
    Variant Straight
    Bore Diameter (Imperial) 0.71"
    Bore Diameter (metric) 18.0
    Height (H) 35.0mm
    Length (L) 50.0mm
    Nominal ⌀ 0.75"
    Nominal ⌀ 25.0mm
    Thread Length (TL) 16mm
    Thread Length (TL) (Imperial) 0.63"
    Wrenching Flat Size (Imperial) 1.24"
    Wrenching Flat Size (Metric) 31.5mm
    CE Certification No
    CSA Certified No
    Halogen-free Yes
    IP-Rating IP68
    Operating Temperature -60 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026560427
    Packaging 1 - Type pack
    UNSPSC Key 39131707
    Metal conduits Metal conduits

    Metal conduits

    Metal conduits from HellermannTyton: Standard metal conduits, coated metal conduits, liquid tight metal conduits and matching metal conduit fittings. Discover now!
