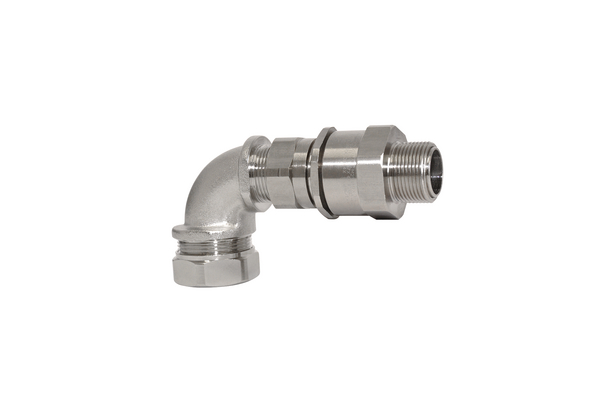

EXD Flexible Conduit Fittings
Art.-No. 166-90578 | LTP32-M32-EXD-90-NPB/PA6-ML

Group II approvals
Multi-part 90 Elbow compression fitting includes elastomer seal and two-part epoxy resin pack for flameproof barrier and ingress protection ratings to IP66 + IP67 + IP68.
Durable Nickel Plated Brass material provides high mechanical strength, ensures electrtical continuity and corrosion resistance.
Suitable for knockouts or Metric threaded entries as fitting rotates until tightened.
Interchangeable with liquid tight metallic conduits in the LTP / LTPHC / LTPLFH / LTPPU / LTBRDP / LTBRDLFH series.
Suitable for use in Zone 1, Zone 2, Zone 21 and Zone 22 hazardous areas.
ATEX and IECEx EX d (Flameproof).
ATEX and IECEx EX e (Increased Safety).
ATEX and IECEx EX ta (Dust Ignition Protection).

Brand Family	HelaGuard®
Color	Metal (ML)
Description	Flameproof 90 Elbow gland with inner Compound Barrier offers high specification, high quality solution for EX d, EX e, and EX ta applications. ATEX and/or IEC approvals for Group II. For indoor or outdoor use applications in Zone 1, Zone 2, Zone 21 and Zone 22 Hazardous areas. Nickel plated brass compression style fitting suitable for knockouts and NPT or Metric threaded entries for IP66 + IP67 + IP68 ingress ratings. Use with LTP / LTPHC / LTPPU / LTBRDP / LTBRDLFH / and LTPLFH metallic conduit.
PART DESCRIPTION	LTP32-M32-EXD-90-NPB/PA6-ML
Packaging Type	pack
Part No.	LTP32-M32-EXD-90
Short Desc.	Hazardous Area Liquid-Tight Flex Met Comp Fitting, 90-Elbow, M32 Metric Thread, 1.0" (32mm) Dia, NPB Metal, 1/pkg
Technical Description	Manufacturer Reference Number: LTP32-M32-EXD-90
Type	LTP32-M32-EXD-90
UV Resistant	No

CSA Certified	No
Halogen Free	Yes
IP-Rating	IP68
Material	NPB, PA6
Material	Nickel Plated Brass (NPB), Polyamide 6 (PA6)
Operating Temperature	-76°F to +185°F (-60°C to +85°C)
REACH Conformity	Yes
ROHS compliant	Yes
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Pkg. Qty.	1EA
Pkg. Qty.	1
