Flexible Metallic Conduits with Liquid-Tight Jacketed Cover
Art.-No. 166-90378 | LTS0250-50M-GS/PVC-BK

Flexible metallic conduit provides liquid-tight performance to IP66 + IP67 + IP68 + IP69 when used with LTP or LTPUL series fittings.

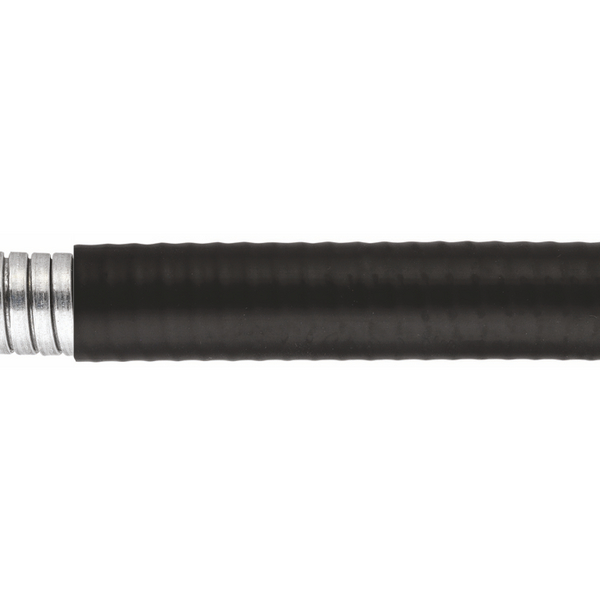

Helically wound (spiral) galvanized steel core with an interlocking design delivers high degree of compression strength and impact resistance.
Smooth PVC cover resists oil and grease and will not wrinkle when conduit is bent; also resistant to acids.
UV-resistant (black), suitable for outdoor use.
Manufactured to UL360 requirements.

Brand Family	HelaGuard®
Color	Black (BK)
Description	A flexible, liquid-tight galvanized steel conduit with a smooth oil resistant PVC coating. LTP series is a general purpose, non-UL rated liquid-tight conduit used in applications that require movement, vibration and bending. Use with LTP or LTPUL series metallic fittings for IP66 + IP67 + IP68 + IP69 ratings. Designed for applications where a UL listing or CSA certification is not required but where a need still exists for a flexible metal conduit to protect wires against impact and exposure to oils and chemicals. My be used in hazardous locations when accompanied with LTPUL or EXD metallic fittings.
PART DESCRIPTION	LTS0250-50M-GS/PVC-BK
Packaging Type	reel
Part No.	LTP10B-50M
Short Desc.	Liquid-Tight Met Conduit, Flex, 0.25" (10mm) Dia, Galvanized Steel w/PVC Cover, Black, 164ft/Reel
Technical Description	Manufacturer Reference Number: LTP10B-50M
Type	LTS0250-50M
UV Resistant	No

CSA Certified	No
Flammability	EN IEC 61386-1
Halogen Free	No
Material	GS, PVC
Material	Galvanised Steel (GS), Polyvinylchloride (PVC)
Operating Temperature	-4°F to +221°F (-20°C to +105°C)
REACH Conformity	Yes
ROHS compliant	Yes
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No
