10/06/2025

LTS0388-25M-GS/PVC-GY
Art.-No. 166-90387 | LTS0388-25M-GS/PVC-GY |

Copied

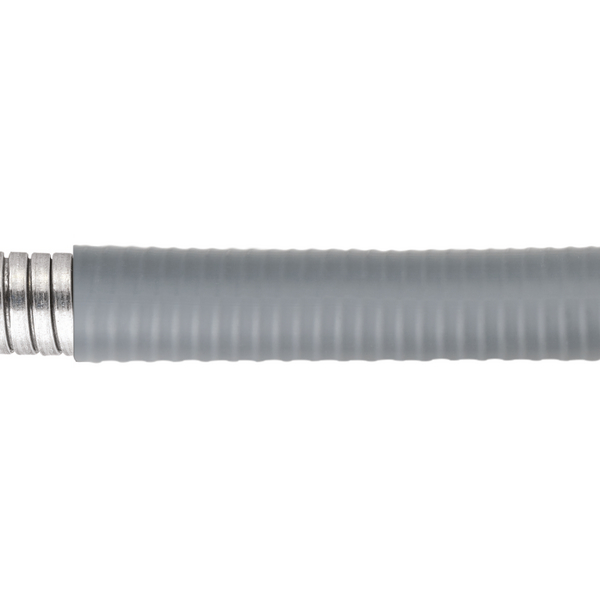

Flexible metallic conduit provides liquid-tight performance to IP66 + IP67 + IP68 + IP69 when used with LTP or LTPUL series fittings.

    Add to watchlist
    Downloads
    Colour Grey (GY)
    Material Galvanised Steel (GS), Polyvinylchloride (PVC)
    PART DESCRIPTION LTS0388-25M-GS/PVC-GY
    Pack Cont. 25.0m
    Package Content packed in reel
    Type LTS0388-25M
    ⌀ D 0.49"
    Bending Radius min. (R) 45mm
    Diameter (D) 12.6mm
    Length (L) 25.0m
    Nominal ⌀ 0.38"
    Nominal ⌀ 16.0mm
    Outside ⌀ (OD) 17.8mm
    Outside ⌀ (OD) 0.70"
    Weight 311g/m
    CSA Certified No
    Flammability EN IEC 61386-1
    Halogen-free No
    Operating Temperature -20 °C to +105 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026520599
    Packaging 1 - Weight (kg) 7.78kg
    Reel Length 82.0ft
    Reel Length 25.0m
    UNSPSC Key 39131706
    Metal conduits Metal conduits

    Metal conduits

    Metal conduits from HellermannTyton: Standard metal conduits, coated metal conduits, liquid tight metal conduits and matching metal conduit fittings. Discover now!
