Fittings for Flexible Metallic Conduits with Liquid-Tight Jacketed Covers
Art.-No. 166-90418
| LTS050-LTS050-NPB-ML
Copied
- Low profile design eases access and installation in tight-fit applications.
- Multipart compression fitting includes polyamide seal for sealing out moisture to obtain IP66, IP67, IP68 and IP69 ingress protection levels.
- Durable nickel plated brass material provides high mechanical and tensile strength and resistance to oil & corrosion.
- Interchangeable with all liquid-tight metallic conduits made to UL360 sizes.
| Brand Family | HelaGuard® |
| Color | Metal (ML) |

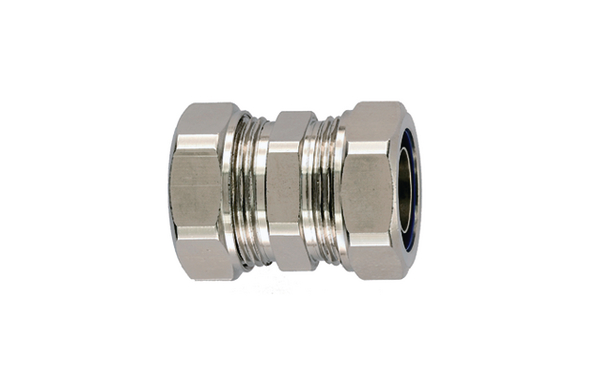

| Description | Multi-part nickel plated brass compression coupler for joining two liquid-tight metallic conduits. Coupler consists of a threaded body, two wrenching nuts, grounding ferrule and nylon compression seal. |
| PART DESCRIPTION | LTS050-LTS050-NPB-ML |
| Packaging Type | EA |
| Part No. | LTP20-LTP20 |
| Short Desc. | Liquid-Tight Met Comp Fitting, Flex, Coupler, 0.50" (20mm) to 0.50" (20mm) Dia, NPB Metal, 2/pkg |
| Technical Description | Manufacturer Reference Number: LTP20-LTP20 |
| Type | LTS050-LTS050 |
| UV Resistant | No |
| Bore Diameter (metric) | 14.5 |
| Bore Hole Diameter (imperial) | 0.57" |
| Height (imperial) | 1.14" |
| Height (metric) | 29.0mm |
| Length (imperial) | 39.5" |
| Length (metric) | 39.5mm |
| Nominal Diameter (imperial) | 0.5" |
| Nominal Diameter (metric) | 20.0mm |
| Thread Type | metric |
| Trade Size | 1/2 " |
| Wrenching Flat Size | 39.5mm |
| Wrenching Flat Size | 1.56" |
