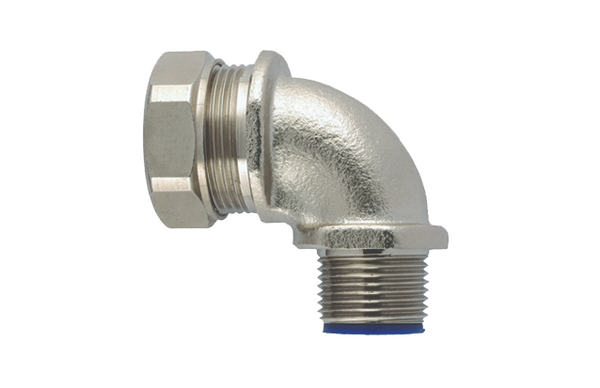

LTS150-90FMC-M50-NPB/PA6-ML : LTS150-90FMC-M50
Art.-No. 166-90435 | LTS150-90FMC-M50-NPB/PA6-ML |  Details

Durable nickel plated brass material provides high mechanical strength and resistance to oil & corrosion.

    Add to watchlist
    Downloads
    Colour Metal (ML)
    Material Nickel Plated Brass (NPB), Polyamide 6 (PA6)
    Pack Cont. 1pc.
    Package Content packed in pack
    PART DESCRIPTION LTS150-90FMC-M50-NPB/PA6-ML
    Thread type metric
    Variant 90°-elbow
    Bore Diameter (Imperial) 1.48"
    Bore Diameter (metric) 37.7mm
    Height (H) 58.0mm
    Length (L) 86.0mm
    Nominal ∅ 50.0mm
    Nominal ∅ 1.5"
    Thread Length (TL) 18mm
    Thread Length (TL) (Imperial) 0.71"
    Thread Size M50
    Wrenching Flat Size (Imperial) 3.39"
    Wrenching Flat Size (Metric) 76.0mm
    CSA Certified No
    Halogen-free Yes
    IP-Rating IP68
    Operating Temperature -50 °C to +135 °C
    Specifications
    UL Listed (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL-File Number E247502
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026521091
    UNSPSC Key 39131707
