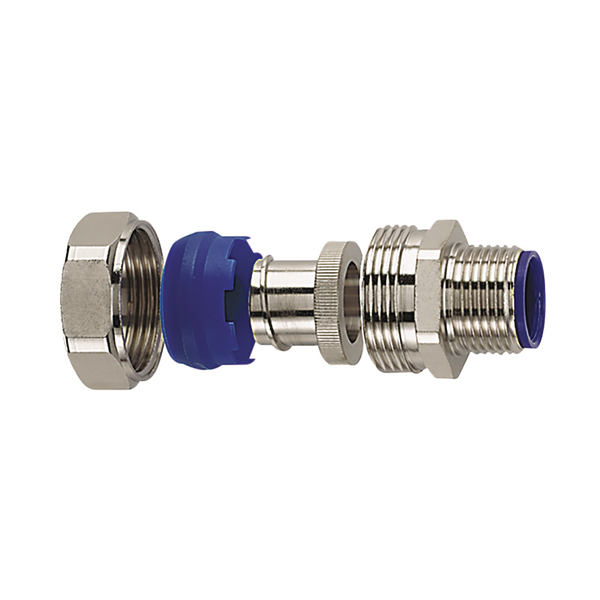

LTS150-FMC-150-NPB/PA6-ML
Art.-No. 166-90403 | LTS150-FMC-150-NPB/PA6-ML |

Copied

    Add to watchlist
    Downloads
    Colour Metal (ML)
    Material Nickel Plated Brass (NPB), Polyamide 6 (PA6)
    PART DESCRIPTION LTS150-FMC-150-NPB/PA6-ML
    Pack Cont. 1pcs.
    Package Content packed in pack
    Thread type NPT
    Type LTS150-FMC-150
    Variant Straight
    Bore Diameter (Imperial) 1.48"
    Bore Diameter (metric) 37.7
    Height (H) 58.0mm
    Length (L) 53.0mm
    Nominal ⌀ 1.5"
    Nominal ⌀ 50.0mm
    Thread Length (TL) 18mm
    Thread Length (TL) (Imperial) 0.71"
    Thread Size (Imperial) 1-1/2 "
    Wrenching Flat Size (Imperial) 1.38"
    Wrenching Flat Size (Metric) 35mm
    CSA Certified No
    Halogen-free Yes
    IP-Rating IP68
    Operating Temperature -50 °C to +135 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) Yes
    UL Listed (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UL-File Number E247502
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026520766
    UNSPSC Key 39131707
