Metallic conduit, with PA6 coating, nom⌀25mm, OD=26.0mm, ID=20.9mm, black, 25m
Art.-No. 166-30803 | NCS25-GS/PA66-BK |

Copied

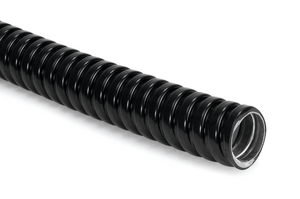

HelaGuard NCS - PA6 Coated Galvanized Steel Conduit.
The HelaGuard NCS galvanised steel conduit with a PA6 coating for higher temperatures and high resistance to acids and solvents.
HelaGuard metallic conduit, plastic coating

    This product is not available anymore.
    • Good resistance to high temperatures
    • Good abrasion resistance
    • High compression, tensile and impact strength
    • Very flexible
    • Good resistance to alkalis and acids
    • Good resistance to chemicals
    Add to watchlist

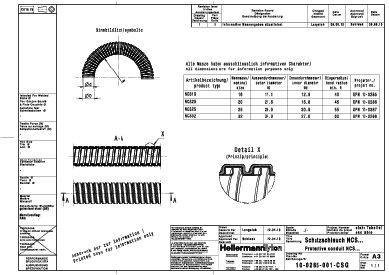

    Downloads CAD-Download
    Application Flexible galvanised steel conduit with elastomeric PA6 coating is used in applications demanding resistance to high temperatures and to acids and solvents.
    Colour Black (BK)
    Conduit Model with PA6 coating
    Material Galvanised Steel (GS), Polyamide 6.6 (PA66)
    PART DESCRIPTION NCS25-GS/PA66-BK
    Package Content 25m
    Package Content packed in reel
    Product Family NCS Galvanised metallic conduit, PA6 coating
    Product Group Metallic conduits with plastic coating
    Short Description NCS Galvanised Steel Conduit with PA6 Coating black ø25mm reel 25m
    Type NCS25
    Weight/Unit 0.41kg
    Bending Radius min. (R) 55mm
    Diameter (D) 20.9mm
    Inside ⌀ (ID) 20.9mm
    Length (L) 25m
    Nominal ⌀ 1"
    Nominal ⌀ 25mm
    Outside ⌀ (OD) 26.0mm
    Weight 411g/m
    CE Certification Yes
    ELV compliant (Article 4 - 2) YES
    EN61386 Classification 444440652410 (with compression fittings)
    Electrical characteristics Not specified
    Halogen-free Yes
    Hazardous Goods No
    IP-Rating IP66 (in conjunction with HG fittings)
    Operating Temperature -40 °C to +120 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 83071000
    GTIN-13 / EAN 4031026319889
    Packaging 1 - Height (m) 0.179m
    Packaging 1 - Length (m) 0.403m
    Packaging 1 - Qty 25
    Packaging 1 - Type reel
    Packaging 1 - Volume (m³) 0.029071211m³
    Packaging 1 - Weight (kg) 10.25kg
    Packaging 1 - Width (m) 0.403m
    Reel Length 25m
    ETIM 7.0 Key EC001179
    ETIM 8.0 Key EC001179
    ETIM 9.0 Key EC001179
