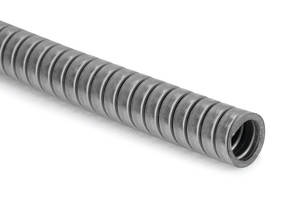

SSC Stainless Steel Conduit ø10mm reel 50m
Art.-No. 166-30209 | SSC10-SS316-ML Details

  • Highly resistant to rust and corrosion
  • High compression, tensile and impact strength
  • Very flexible
Package size
Application Stainless steel, corrosion-resistant flexible conduit used for protection of sensor cables, instrumentation tubing, as well as hydraulic and pneumatic hoses, particularly in corrosive environments. Commonly used in hospitals and clinics.
Colour Metal (ML)
Material Stainless Steel (SS316)
PART DESCRIPTION SSC10-SS316-ML
Pack Cont. 50m
Package Content packed in reel
Product Family SSC Stainless steel conduit
Product Group Metallic conduits
Short Description SSC Stainless Steel Conduit ø10mm reel 50m
Type SSC10
Bending Radius min. (R) 25mm
Diameter (D) 6.8mm
Inside Ø (ID) 6.8mm
Length (L) 50m
Nominal ∅ 0.38"
Nominal ∅ 10mm
Outside Ø (OD) 9.1mm
Weight 110g/m
Weight/Unit 0.1kg
CE Certification Yes
ELV compliant (Article 4 - 2) YES
EN61386 Classification 445640404310
Electrical characteristics Not specified
Halogen-free Yes
Hazardous Goods No
IP-Rating IP40
Operating Temperature -100 °C to +600 °C
ROHS compliant Yes
Specifications
Country of Origin GB
Customs Number 83071000
GTIN-13 / EAN 4031026458434
Packaging 1 - Height (m) 0.19m
Packaging 1 - Length (m) 0.25m
Packaging 1 - Qty 50
Packaging 1 - Type reel
Packaging 1 - Volume (m³) 0.01188
Packaging 1 - Weight (kg) 5.0kg
Packaging 1 - Width (m) 0.25m
Packaging 3 - Height (m) 1.12m
Packaging 3 - Length (m) 1.2m
Packaging 3 - Qty 600
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 1.0752
Packaging 3 - Weight (kg) 64.2kg
Packaging 3 - Width (m) 0.8m
Packaging 4 - Height (m) 1.264m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 600
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.213
Packaging 4 - Weight (kg) 85.2kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC001179
ETIM 8.0 Key EC001179
ETIM 9.0 Key EC001179
