Divisible seals for in-duct use, SRV and SRV-G.


Art.-No. 874-00112

| EZA-t_40/K+2x7-BK

 |

Copied

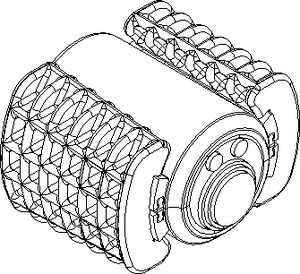

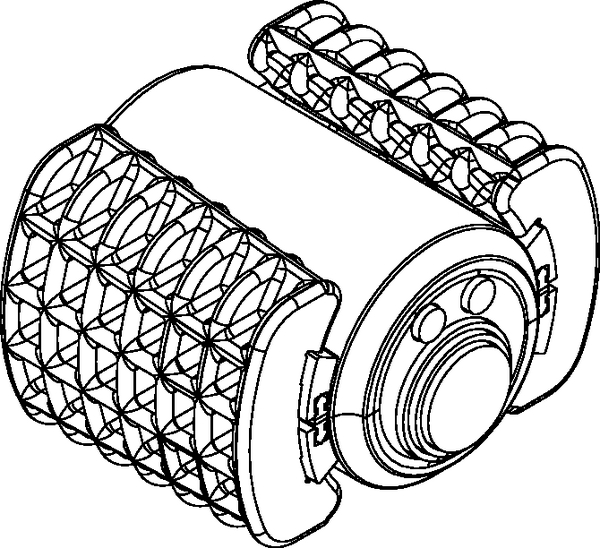

Divisible seals EZA-t 40 K+2x7
Divisible seals EZA-t seal ducts and speedpipe bundles.

    • divisible
    • reusable
    • gas- and water-tight up to 0.5 bar
    Add to watchlist
    Application Sealing speedpipe bundles under ground with divisible seals, adjusted to all occupancy variants of PE-HD ducts: due to the variable gaskets bundles as well as protective ducts - either empty or occupied with speedpipe / cables - remain clean, dry and operational over decades. The divisible elements fix speedpipe subduct solutions against temperature-affected length modifications.
    Application Method 0 - 2 speedpipe ⌀ 7
    Cable ⌀ max 27.5mm
    Cable ⌀ min 18.5mm
    Colour Black (BK)
    PART DESCRIPTION EZA-t_40/K+2x7-BK
    Package Content 12pcs.
    Package Content packed in carton
    Product Family EZA-t 40/K+2x7
    Product Group Divisible seals for in-duct use, SRV and SRV-G.
    Type EZA-t_40/K+2x7
    Diameter (D) 40mm
    Country of Origin DE
    GTIN-13 / EAN 4031051013783
    Packaging 1 - Qty 12
    Packaging 1 - Type carton
    Packaging 2 - Qty 864
    Packaging 2 - Type pallet
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000
