House lead-ins ADSB/ADSB-D/ADSB-F.
Art.-No. 874-00072
| Set_ADSB-D_7.0-9.0-BK/OG
|
Copied
- water impact classes according to DIN 18533: W1.1-E: Soil moisture and non-pressing water in floor slabs and walls in contact with the ground; W1.2-E: Soil moisture and non-pressing water in floor slabs and walls in contact with the ground with drainage
- gas and water tightness: 1 bar
- principle of sealing: integrated sealing element
- installation in concrete wall: no auxiliary material needed
- installation in hollow block: sanded sleeve
More products in this product group:
| Application |

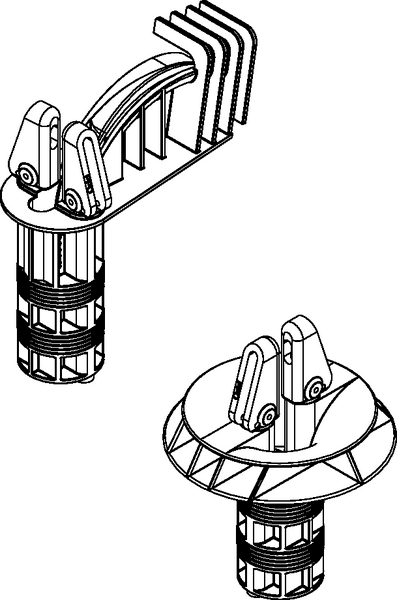

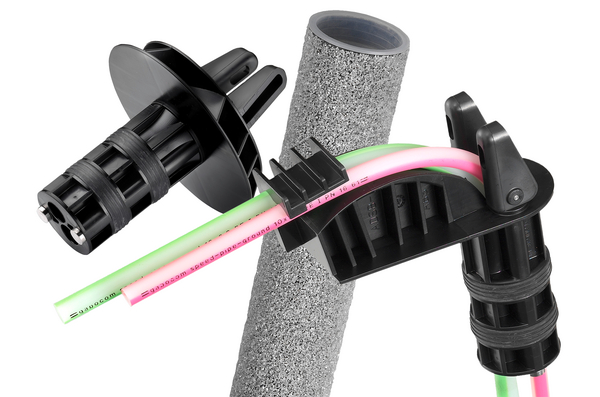

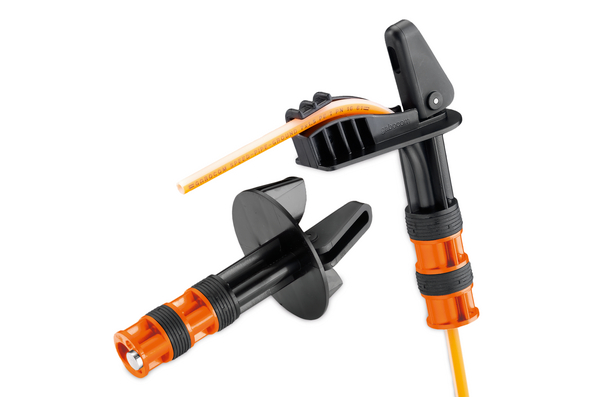

gabocom offers two different sealing elements with protective bend: ADSB (single) and ADSB-D (double). Both versions include an inside- and outside-part with integrated sealing that allow the house lead-in of cables or speedpipe ground in the cellar. Without the use of tools - they are suitable for the application in environments with soil moisture or non-pressing water, gas- and water-tight up to 1 bar. The ADSB-F can also be installed in buildings without basement and can be installed with an installation angle of up to 30°. After the blowing-in process the speedpipe ground is fed into the integrated deflection pulley and lead along the cellar wall. From a wall thickness of over 400 mm upwards or in hollow block, the additional use of the sanded sleeve is recommended. |
| Application Method | 2 speedpipe ground 7x1.5 or 2 cable 7 - 9 mm |
| Colour | Orange (OG), Black (BK) |
| PART DESCRIPTION | Set_ADSB-D_7.0-9.0-BK/OG |
| Package Content | 10pcs. |
| Package Content packed in | carton |
| Product Family | Set ADSB-D 7,0-9,0 |
| Product Group | House lead-ins ADSB/ADSB-D/ADSB-F. |
| Type | Set_ADSB-D_7.0-9.0 |
