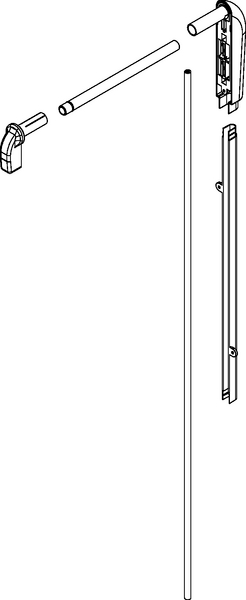

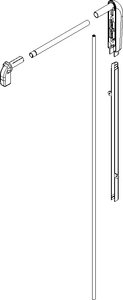

House lead-ins HEO/MOB.
Art.-No. 874-00079
| Set_HEO_10-WH
|
Copied
- splash water protection according to IP 65
- cable fixed against tensile loadings (HEO)
- gas- and water-tight sealing up to 0.5 bar
- integrated deflection bend with a radius of 25 mm assuring an accurate lead of inside the wall
More products in this product group:
Application | With the HEO house lead-ins with speedpipe ground can be realized above ground on buildings. The HEO can be used for a max. wall thickness of 560mm. By means of an integrated connector with gas-stop (HEO), a speedpipe ground can be converted into a speedpipe indoor for the inside of the building. The gas-stop (HEO) fixes and seals the cable up to 0.5 bar against gas and water in longitudinal direction. speedpipe and connection points are covered with inconspicuous, plain panels and thus are mechanically protected. |
Application Method | speedpipe ground 10x2.0 |
Colour | White (WH) |
Description | with gas stop |
PART DESCRIPTION | Set_HEO_10-WH |
Pack Cont. | 1pcs. |
Package Content packed in | carton |
Product Family | Set HEO 10 |
Product Group | House lead-ins HEO/MOB. |
Type | Set_HEO_10 |
