speedpipe indoor.
Art.-No. 873-00002 | speedpipe-indoor_10x2.0-PE-HD-WH |

Copied

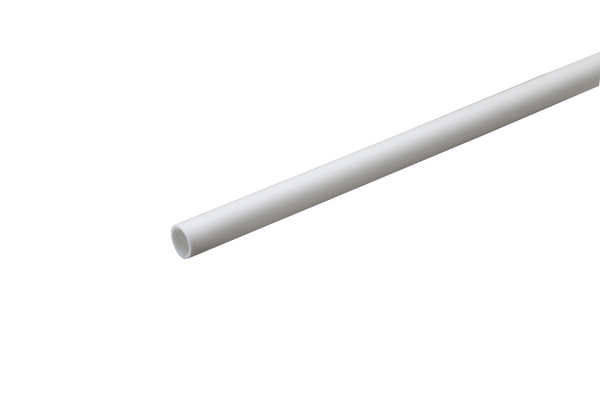

speedpipe indoor 10x2,0
speedpipe indoor 10x2,0

    • fire tests according to the legal safety objectives
    • installation and laying instructions available
    • can be used in combination with firewalls
    • inner side furnished with optimised slide ribs, therefore optimally applicable for blowing and pulling in micro cables
    • not flame spreading and halogen free according to EN 60684-2 and low smoke density according to EN 61034-2
    • speedpipe indoor are delivered on a wooden or plastic spool (box) which is optimised for shipment and installation
    Package size
    Add to watchlist
    Application The speedpipe indoor were developed by gabocom especially for the application inside buildings. They are not flame spreading and were tested in accordance with the standards DIN EN 13501-1, DIN EN 60332-1-2 and regarding the absence of halogens according to DIN EN 60684-2. Furthermore, the speedpipe indoor were tested in accordance with DIN EN 61386-22 (VDE 0605) for a clear definition of their laying.
    Colour White (WH)
    Material Polyethylene, high density (PE-HD)
    PART DESCRIPTION speedpipe-indoor_10x2.0-PE-HD-WH
    Package Content 2500m
    Package Content packed in drum
    Product Family speedpipe indoor 10x2,0
    Product Group speedpipe indoor.
    Type speedpipe-indoor_10x2.0
    Weight/Unit 0.054kg
    Diameter (D) 10mm
    Length (L) 2500m
    Pressure Nominal (PN) PN 16
    Wall (WT) 2mm
    CE Certification Yes
    Country of Origin DE
    GTIN-13 / EAN 4031051035259
    Packaging 1 - Height (m) 1.2m
    Packaging 1 - Length (m) 1.2m
    Packaging 1 - Qty 2500
    Packaging 1 - Type drum
    Packaging 1 - Volume (m³) 0.5328m³
    Packaging 1 - Weight (kg) 137.5kg
    Packaging 1 - Width (m) 0.37m
    Packaging 2 - Height (m) 1.26m
    Packaging 2 - Length (m) 1.2m
    Packaging 2 - Qty 7500
    Packaging 2 - Type pallet
    Packaging 2 - Volume (m³) 1.8144m³
    Packaging 2 - Weight (kg) 490kg
    Packaging 2 - Width (m) 1.2m
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000
