28/03/2024

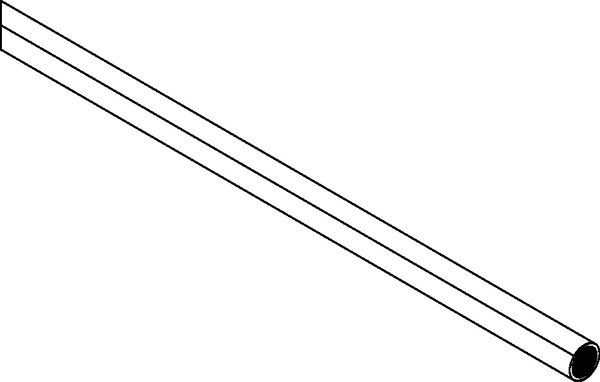

speedpipe 7x0,75
Art.-No. 871-00009 | speedpipe_7x0.75-PE-HD-VT Details

  • small outer diameter for optimum exploitation of the existing duct capacity
  • transparent inspection windows show the occupation with cables
  • can also be blown into occupied PE-HD-protective pipes (Ø 40, 50, 63 mm)
  • reusable even after blowing out installed fibre optic cables - like on the first day
  • sliding ribs specified for any dimension for an optimal air cushion of the optical fibre during the blowing in process
  • available in various dimensions in strong colours for better distinction
  • they are delivered on a wooden one-way spool which is optimised for transport and installation
Show more
Application speedpipe for subduct solutions are blown into PE-HD ducts over long distances. Free space within occupied or empty duct systems can be used to the maximum. Simultaneously the bigger inner diameter, compared to microducts that can be layed in the ground, offers space for high fibre capacities - space that can be exploited for every single speedpipe even after decades.
Cable ∅ max 4mm
Cable ∅ min 1.8mm
Colour Violet (VT)
Material Polyethylene, high density (PE-HD)
Pack Cont. 5000m
Package Content packed in drum
PART DESCRIPTION speedpipe_7x0.75-PE-HD-VT
Product Family speedpipe 7x0,75
Product Group Fast and cheap: Use existing duct systems with speedpipe and save civil engineering costs for the broadband expansion.
Diameter (D) 7mm
Length (L) 5000m
Pressure Nominal (PN) PN 10
Wall (WT) 0.75mm
Weight/Unit 0.014kg
Operating Temperature -10 °C to +50 °C
Country of Origin DE
GTIN-13 / EAN 4031051008543
Packaging 1 - Height (m) 1.2m
Packaging 1 - Length (m) 1.2m
Packaging 1 - Qty 5000
Packaging 1 - Type drum
Packaging 1 - Volume (m³) 0.52704
Packaging 1 - Weight (kg) 93kg
Packaging 1 - Width (m) 0.366m
Packaging 2 - Height (m) 1.248m
Packaging 2 - Length (m) 1.2m
Packaging 2 - Qty 15000
Packaging 2 - Type pallet
Packaging 2 - Volume (m³) 1.7971
Packaging 2 - Weight (kg) 295kg
Packaging 2 - Width (m) 1.2m
ETIM 7.0 Key EC000000
ETIM 8.0 Key EC000000
ETIM 9.0 Key EC000000
