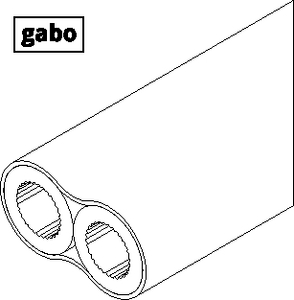

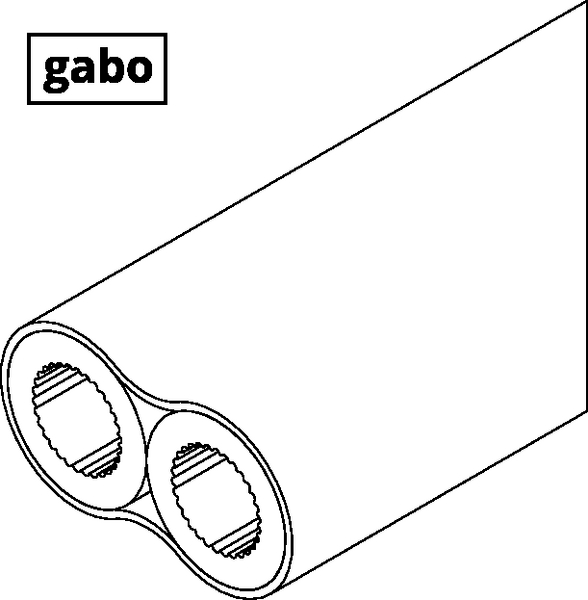

SRV-G 2x10 tc
Art.-No. 872-00140 | SRV-G_2x10_tc-PE-HD-OG |  Details

speedpipe bundles ground SRV-G tc for direct burying.

    • resistant to the effects of the surrounding soil
    • easy and time saving branching off without any special tools
    • the combination of smaller dimensions with an internal single duct of a greater diameter is suitable for FTTB/H as well as for FTTN/C
    • suitable for all common types of laying
    • supplied on a wooden one-way spool
    Show more
    Add to watchlist
    Application speedpipe bundles ground SRV-G tc bundle various colored, thick-walled speedpipe ground by means of a tight outer sheath. Due to the variety of single duct dimensions of the speedpipe ground and their combination within the bundle, you consider spare capacities for the future. Our system concept is reflected in the protective function and the ease of assembly of the tight outer sheath: it is rugged against the impacts of the surrounding soil, but nevertheless can be opened quickly, easily and safely for branching-off from the bundle.
    Colour Orange (OG)

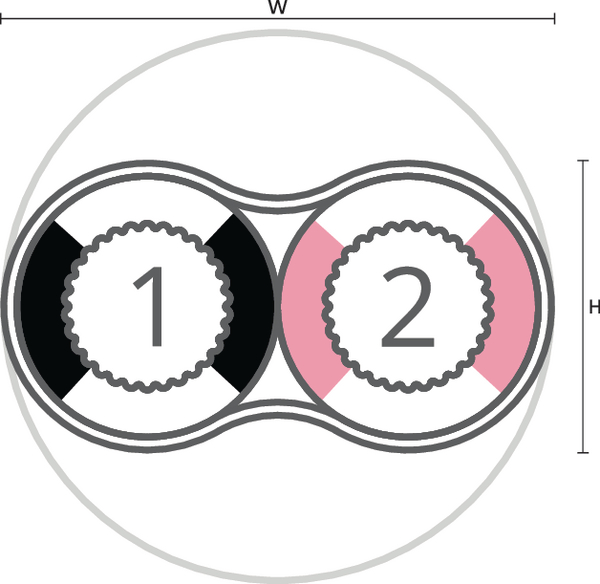

    Description 2 speedpipe ground 10x2.0
    Material Polyethylene, high density (PE-HD)
    Pack Cont. 900m
    Package Content packed in drum
    PART DESCRIPTION SRV-G_2x10_tc-PE-HD-OG
    Product Family SRV-G 2x10 tc
    Product Group speedpipe bundles ground tight covered.
    Variant gabo
    Expansion level Fibre to the Building (FTTB), Fibre to the Home (FTTH)
    Length (L) 900m
    Wall (WT) 0.5mm
    Weight/Unit 0.129kg
    Country of Origin DE
    GTIN-13 / EAN 4031051014438
    Packaging 1 - Height (m) 1.2m
    Packaging 1 - Length (m) 1.2m
    Packaging 1 - Qty 900
    Packaging 1 - Type drum
    Packaging 1 - Volume (m³) 0.52704m³
    Packaging 1 - Weight (kg) 139.1kg
    Packaging 1 - Width (m) 0.366m
    Packaging 2 - Height (m) 1.248m
    Packaging 2 - Length (m) 1.2m
    Packaging 2 - Qty 2700
    Packaging 2 - Type pallet
    Packaging 2 - Volume (m³) 1.7971m³
    Packaging 2 - Width (m) 1.2m
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000
