Thick-walled speedpipe ground single ducts in connection: SRV-G


Art.-No. 872-00022

| SRV-G_50/5x14-PE-HD-OG

 |

Copied
speedpipe bundles ground SRV-G for in-duct installations.

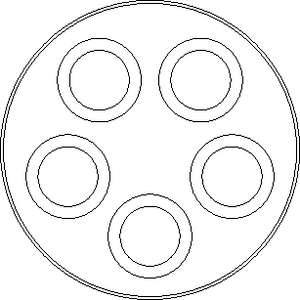

speedpipe bundles ground SRV-G
speedpipe bundles ground SRV-G

    Add to watchlist
    speedpipe-ground_14x2.0 871-00062
    speedpipe ground.
    Add to watchlist
    speedpipe-ground_14x2.0 871-00063
    speedpipe ground.
    Add to watchlist
    speedpipe-ground_14x2.0 871-00064
    speedpipe ground.
    Add to watchlist
    speedpipe-ground_14x2.0 871-00065
    speedpipe ground.
    Add to watchlist
    speedpipe-ground_14x2.0 871-00066
    speedpipe ground.
    Add to watchlist

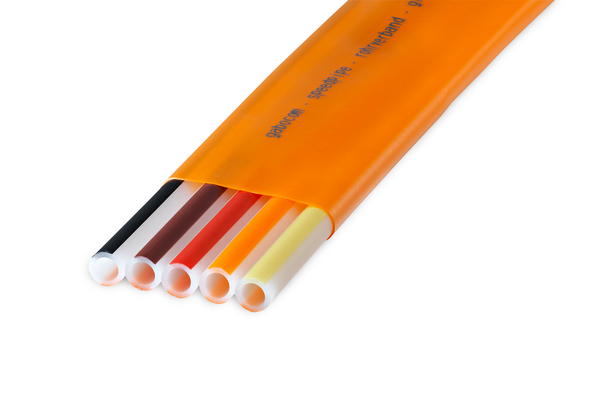

    Application The speedpipe bundles ground SRV-G consist of varicoloured speedpipe ground which are bundled by a flexible jacket pipe. The speedpipe bundle ground can be pulled into existing PE-HD ducts for ensuring maximum occupation.
    Colour Orange (OG)
    Description 5 speedpipe ground 14x2.0
    Material Polyethylene, high density (PE-HD)
    PART DESCRIPTION SRV-G_50/5x14-PE-HD-OG
    Package Content 1700m
    Package Content packed in drum
    Product Family SRV-G 50/5x14
    Product Group Thick-walled speedpipe ground single ducts in connection: SRV-G
    Type SRV-G_50/5x14
    Variant gabo
    Weight/Unit 0.458kg
    Diameter (D) 50mm
    Length (L) 1700m
    Wall (WT) 0.5mm
    Country of Origin DE
    GTIN-13 / EAN 4031051080037
    Packaging 1 - Height (m) 2.4m
    Packaging 1 - Length (m) 2.4m
    Packaging 1 - Qty 1700
    Packaging 1 - Type drum
    Packaging 1 - Volume (m³) 6.912m³
    Packaging 1 - Weight (kg) 1128.6kg
    Packaging 1 - Width (m) 1.2m
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000

    Accessories

    DSM_14_transparent_permanent 874-00005
    Transparent permanent connectors.
    Add to watchlist
    ES_14 874-00035
    End-stops transparent permanent.
    Add to watchlist
    SRV-M_50 874-00049
    Bundle connectors.
    Add to watchlist
    SRV-M_50_MAXI 874-00050
    Bundle connectors.
    Add to watchlist
    SRV-M_50_MAXI 874-00051
    Bundle connectors.
    Add to watchlist
    EZA-t_50/5x14 874-00135
    Divisible seals for in-duct use, SRV and SRV-G.
    Add to watchlist
