speedpipe bundles for in-duct systems.

significant cost saving especially appears in comparison to the occupation with a multi duct MR4
high-quality PE-HD ensures highest product quality and a long life cycle
fibre optic cables can be blown into the speedpipe over long distances
branching off is carried out in an easy and cost saving way

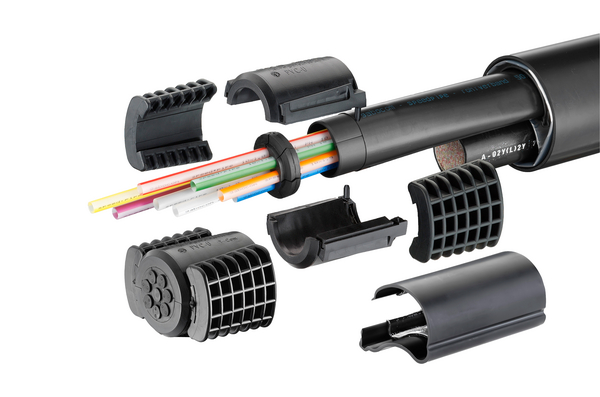

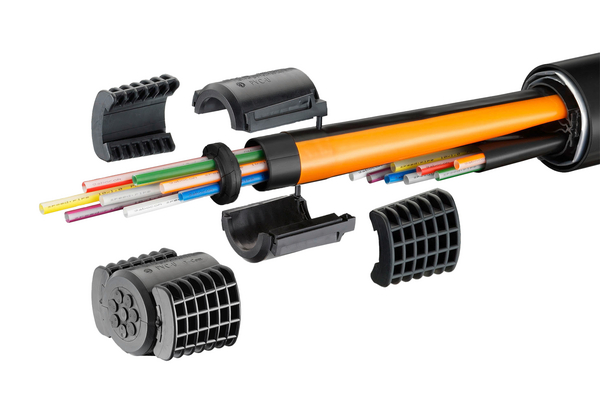

SRV can be sealed against gas and water up to 0.5 bar and are fixed against elongations due to temperature changes by using the outside stiffener SHa or the double outside stiffener DSHa and the ADE / TDUX (Tyco)
supplied on a wooden one-way spool

More products in this product group:

speedpipe_10x1.0 871-00010
Fast and cheap: Use existing duct systems with speedpipe and save civil engineering costs for the broadband expansion.

speedpipe_10x1.0 871-00011
Fast and cheap: Use existing duct systems with speedpipe and save civil engineering costs for the broadband expansion.

speedpipe_10x1.0 871-00012
Fast and cheap: Use existing duct systems with speedpipe and save civil engineering costs for the broadband expansion.

speedpipe_10x1.0 871-00013
Fast and cheap: Use existing duct systems with speedpipe and save civil engineering costs for the broadband expansion.

speedpipe_10x1.0 871-00014
Fast and cheap: Use existing duct systems with speedpipe and save civil engineering costs for the broadband expansion.

speedpipe_10x1.0 871-00015
Fast and cheap: Use existing duct systems with speedpipe and save civil engineering costs for the broadband expansion.

speedpipe_10x1.0 871-00016
Fast and cheap: Use existing duct systems with speedpipe and save civil engineering costs for the broadband expansion.

speedpipe_10x1.0 871-00019
Fast and cheap: Use existing duct systems with speedpipe and save civil engineering costs for the broadband expansion.

Colour	Orange (OG), Black (BK)

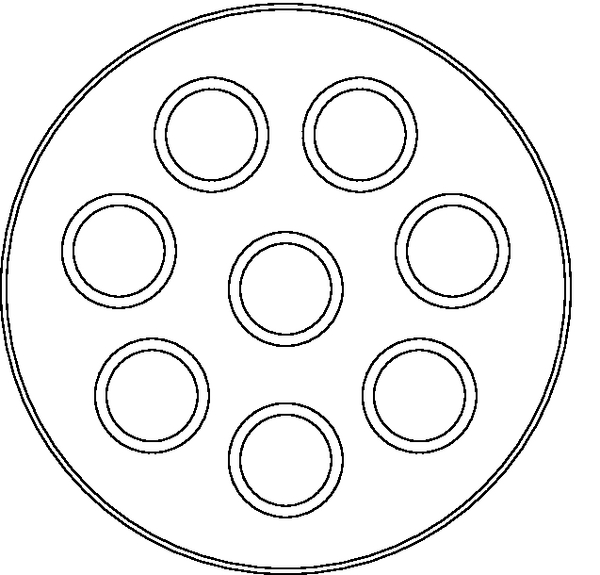

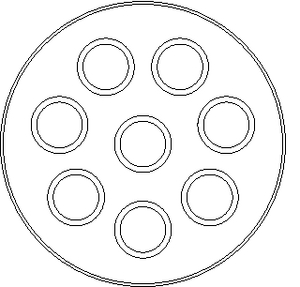

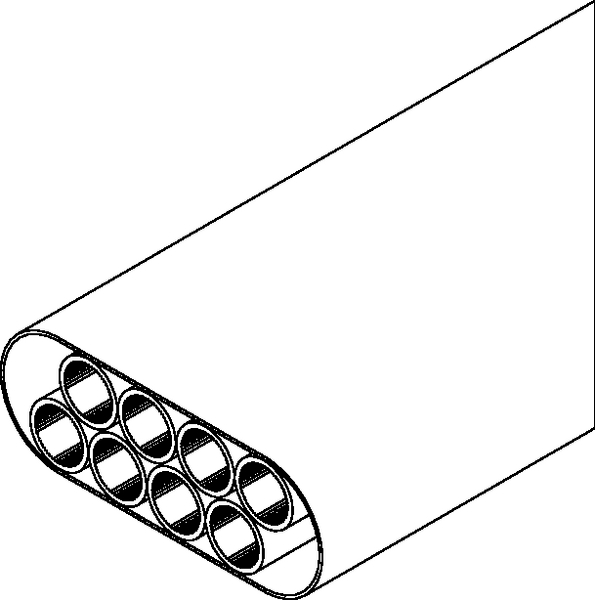

Description	8 speedpipe 10x1.0
Material	Polyethylene, high density (PE-HD)
PART DESCRIPTION	SRV_50/8x10-PE-HD-BK/OG
Package Content	2300m
Package Content packed in	drum
Product Family	SRV 50/8x10
Product Group	speedpipe bundles for in-duct systems.
Type	SRV_50/8x10
Typical Application	By means of a cable grip on the flexible jacket pipe the speedpipe bundles SRV are drawn into empty as well as occupied cable ducts. With the internal eight speedpipe 10 x 1.0 mm up to two bundles can be drawn into an empty cable duct ⌀ 110 mm. Even in case of an occupancy with a cable up to ⌀ 50 mm the SRV optimally exploits the residual section for additional fibre optic cables. The comparison with a standard multi-duct MR4 regarding material and effort clearly is in favour of the bundle.
Variant	DIN
Weight/Unit	0.313kg
