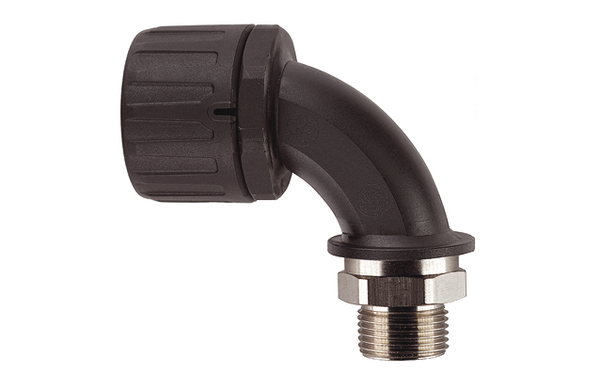

Fitting, nom⌀21mm, M20, black, 10pcs.
Art.-No. 166-90035 | HG050-90M-M20-PA66/NPB-BK |

Copied
External nickel-plated brass metric thread provides a secure connection.

    Add to watchlist
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6 (PA66), Nickel Plated Brass (NPB)
    PART DESCRIPTION HG050-90M-M20-PA66/NPB-BK
    Package Content 10pcs.
    Package Content packed in pack
    Type HG050-90M-M20
    UV-Stabilised No
    Bore Diameter (Imperial) 0.55"
    Bore Diameter (metric) 14.0
    Length (L) 21.2mm
    Nominal ⌀ 0.5"
    Nominal ⌀ 21mm
    Outside ⌀ (OD) 32mm
    Outside ⌀ (OD) 1.26"
    Thread Length (TL) 12mm
    Thread Length (TL) (Imperial) 0.47"
    Thread Size M20
    clearance hole Diameter (Imperial) 0.787"
    clearance hole Diameter (Metric) 20mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Halogen-free Yes
    Operating Temperature -50 °C to +135 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin GB
    GTIN-13 / EAN 4031026461892
    ETIM 7.0 Key EC001176
    ETIM 8.0 Key EC001176
    ETIM 9.0 Key EC001176
    UNSPSC Key 39131708
