BSHDWV-PA6-BK
Art.-No. 170-03203 | BSHDWV-PA6-BK |

Copied

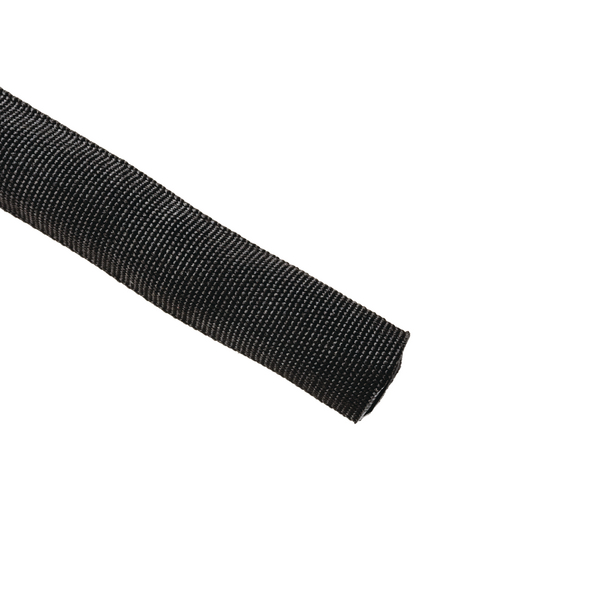

Tightly woven fabric bundles and protects cables and hoses from sunlight and abrasion damage.

    Package size
    Add to watchlist
    Downloads
    Colour Black (BK)
    Material Polyamide 6 (PA6)
    Open, post termination (Yes/No) Yes
    PART DESCRIPTION BSHDWV-PA6-BK
    Pack Cont. 15.24m
    Package Content packed in pack
    Type BSHDWV
    ⌀ D 1.0"
    Bundle ⌀ 2.54-24.1mm
    Bundle ⌀ max. 24.1mm
    Bundle ⌀ min. 2.54mm
    Diameter (D) 25.4mm
    Length (L) 15.24m
    Nominal ⌀ 1"
    Nominal ⌀ 25.4mm
    Wall (WT) 1.14mm
    Wall (WT) .045"
    CE Certification No
    CSA Certified No
    Halogen-free Yes
    Operating Temperature -45 °C to +120 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026494616
    Packaging 1 - Type reel
    Reel Length 50.0ft
    Reel Length 15.24m
    ETIM 7.0 Key EC001182
    ETIM 8.0 Key EC001182
    ETIM 9.0 Key EC001182
    UNSPSC Key 39131602
