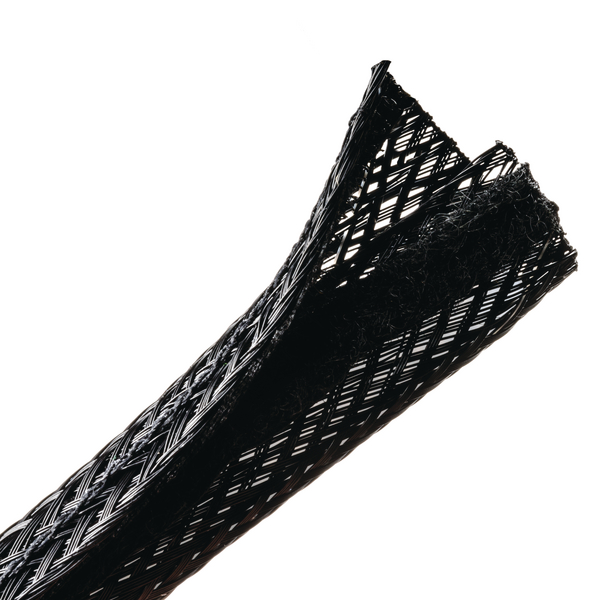

Braided Sleeving—Hook-and-Loop
Art.-No. 170-03154 | BSHKLPFR340B-PET-BK

Copied
Braided sleeving material is self-extinguishing and complies with UL VW-1 standards.

    • Flexible construction that conforms to irregular shapes and contours.
    • Hook and loop feature wraps over cable bundle allowing future access to cables.
    • Easy access saves assembly time and allows for easy splicing or insertion of additional wires.
    • Meets military specifications (Mil-202 approved.)
    • Cuts easily with a benchmount hot knife.
    • Resists chemicals and cleaning solvents.
    Add to watchlist
    Downloads
    Brand Family BSHKLP-Series
    Color Black (BK)
    Description Flame retardant expandable braided sleeving with hook & loop strip for wrapping around cable assemblies. Color matched hook & loop closure provides an easy on and off installation, as well as convenient access for harness break-outs.
    PART DESCRIPTION BSHKLPFR340B-PET-BK
    Packaging Type pack
    Part No. 170-03154
    Short Desc. Braided Sleeving, Hook & Loop, Flame Retardant, 0.75" Dia, PET, Black, 100 ft/bulk reel
    Type BSHKLPFR340B
    UV Resistant No
    Diameter (imperial) 0.75"
    Diameter (metric) 19.1mm
    Length (imperial) 100.0ft
    Length (metric) 30.48m
    Max. Bundle Diameter (imperial) 0.75"
    Max. Bundle Diameter (metric) 19.1mm
    Min. Bundle Diameter (imperial) 0.1"
    Min. Bundle Diameter (metric) 2.54mm
    Nominal Diameter (imperial) 0.75"
    Nominal Diameter (metric) 19.1mm
    Recommended Cutting Tools Hot Knife
    Reel Length (imperial) 100.0ft
    Trade Size 3/4 "
    Wall Thickness (imperial) 0.025"
    Wall Thickness (metric) 0.635mm
    CE Certification No
    CSA Certified No
    Flammability UL 224 VW-1
    Halogen Free Yes
    Material PET
    Material Polyester (PET)
    Operating Temperature -94°F to +257°F (-70°C to +125°C)
    Prop65 Warning No
    REACH Conformity Yes
    ROHS compliant Yes
    UL File Number [Logo] E107055 [RU]
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) Yes
    US MILSPEC MIL-STD-202
    Customs Number (Schedule B) 5808100000
    Harmonized Tariff Schedule Code 5808.10.7000
    Packaging 1 - Weight (kg) 0.82kg
    Pkg. Qty. 100ft
    Pkg. Qty. 30.48m
