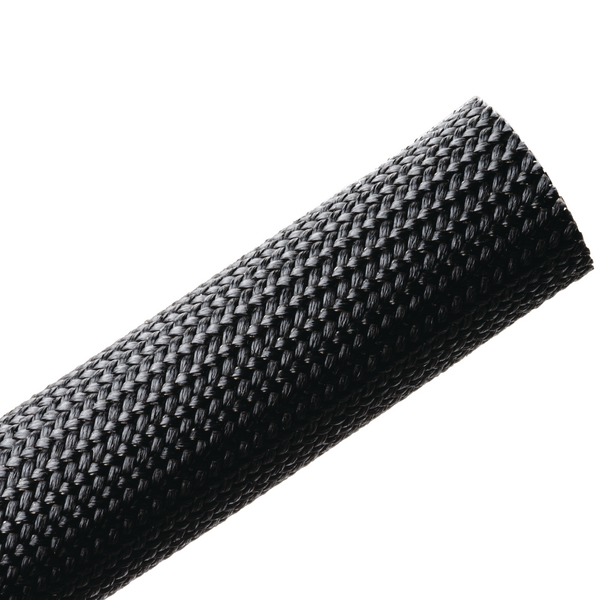

1.0" Resin Coated Fiberglass Sleeving, Standard Reel, Black
Art.-No. 170-03061
| BSHTFG100-GF-BK
Copied
- An exceptionally tough sleeving material which provides thermal protection up to 1,200°F.
- Sturdy construction maintains its tight structure under extreme shaking, scraping, pressure and varying temperature conditions.
- Cuts easily with ordinary scissors for easy application.
- UL VW-1 flammability rating for use in conditions requiring a very high degree of flame resistance.
More products in this product group:
| Brand Family | BSHTFG-Series |
| Color | Black (BK) |
| Description | An extremely high-temperature resistant sleeving designed to protect wires and cables subjected to continuous temperature variations, vibration, abrasion, and mechanical stress. Perfect for engine manifolds and exhaust systems or any application where fire and exceeding temperatures create a hazard to workforce and equipment. |
| PART DESCRIPTION | BSHTFG100-GF-BK |
| Packaging Type | pack |
| Part No. | 170-03061 |
| Short Desc. | Braided Sleeving, Resin Coated Fiberglass, 1" Dia, GF, Black, 25 ft/reel |
| Type | BSHTFG100 |
| UV Resistant | No |
|
|
|
| Diameter (imperial) | 1.0" |
| Diameter (metric) | 25.4mm |
| Length (imperial) | 25.0ft |
| Length (metric) | 7.62m |
| Max. Bundle Diameter (imperial) | 1.63" |
| Max. Bundle Diameter (metric) | 41.3mm |
| Min. Bundle Diameter (imperial) | 0.1" |
| Min. Bundle Diameter (metric) | 2.54mm |
| Nominal Diameter (imperial) | 1" |
| Nominal Diameter (metric) | 25.4mm |
| Recommended Cutting Tools | Scissors |
| Reel Length (imperial) | 25.0ft |
| Trade Size | 1 " |
| Wall Thickness (imperial) | 0.057" |
| Wall Thickness (metric) | 1.45mm |
Download
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL VW-1 |
| Halogen Free | Yes |
| Material | GF |
| Material | Glass Fiber (GF) |
| Operating Temperature | -94°F to +1202°F (-70°C to +650°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| UL File Number [Logo] | E329694 [RU] |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | Yes |
