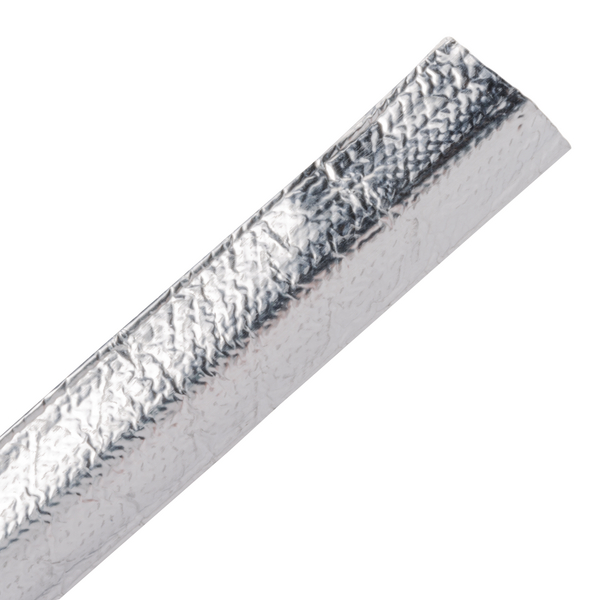

1/2" Aluminum Laminated Fiberglass Sleeving, Std Reel, Sil
Art.-No. 170-03062 | BSHTTST12SR-AL/GF-SR

Copied
Aluminum laminated fiberglass sleeving reflects radiant heat away from sensitive contents inside the tubing.

    • A layer of aluminum provides protection from chemicals, scraping, cuts and abrasion.
    • Additional layer also provides insulation barrier for vulnerable wires and cables within high temperature environments.
    • Cuts with ordinary scissors for fast, easy application.
    Add to watchlist
    Downloads
    Brand Family BSHTT-Series
    Color Silver (SR)
    Description High Temperature Aluminum Laminated Fiberglass Sleeving is a tubular shaped product that combines the protection of bonded aluminum and fiberglass into a single solution that is able to reflect radiant heat away from the sensitive contents inside the tube.
    PART DESCRIPTION BSHTTST12SR-AL/GF-SR
    Packaging Type pack
    Part No. 170-03062
    Short Desc. Braided Sleeving, Aluminum Laminated Fiberglass, 0.5" Dia, AL/GF, Silver, 100 ft/reel
    Type BSHTTST12SR
    UV Resistant No
    Diameter (imperial) 0.50"
    Diameter (metric) 12.7mm
    Length (imperial) 100.0ft
    Length (metric) 30.48m
    Max. Bundle Diameter (imperial) 0.44"
    Max. Bundle Diameter (metric) 11.1mm
    Min. Bundle Diameter (imperial) 0.1"
    Min. Bundle Diameter (metric) 2.54mm
    Nominal Diameter (imperial) 0.5"
    Nominal Diameter (metric) 12.7mm
    Recommended Cutting Tools Scissors
    Reel Length (imperial) 100.0ft
    Trade Size 1/2 "
    Wall Thickness (imperial) 0.025"
    Wall Thickness (metric) 0.64mm
    CE Certification No
    CSA Certified No
    Halogen Free Yes
    Material AL, GF
    Material Aluminum (AL), Glass Fiber (GF)
    Operating Temperature -76°F to +491°F (-60°C to +255°C)
    Prop65 Warning No
    REACH Conformity Yes
    ROHS compliant Yes
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Customs Number (Schedule B) 7019905150
    Harmonized Tariff Schedule Code 7019.90.5150
    Packaging 1 - Weight (kg) 1.16kg
    Pkg. Qty. 100ft
    Pkg. Qty. 30.48m
