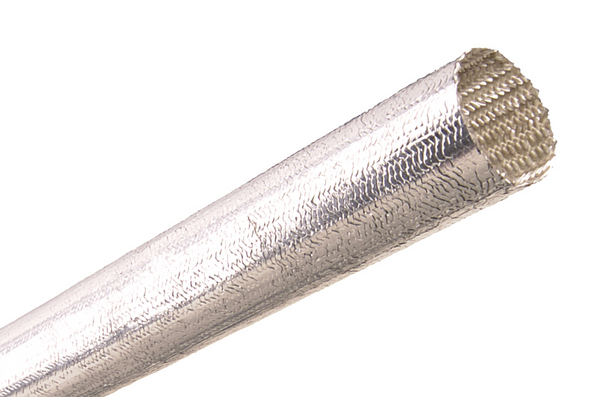

Braided sleeving, nom⌀63.5mm, ⌀2.54-60.3mm, silver, 15.24m
Art.-No. 170-03097 | BSHTTST212SR-AL/GF-SR |

Copied
Aluminum laminated fiberglass sleeving reflects radiant heat away from sensitive contents inside the tubing.

    • A layer of aluminum provides protection from chemicals, scraping, cuts and abrasion
    • Additional layer also provides insulation barrier for vulnerable wires and cables within high temperature environments
    • Cuts with ordinary scissors for fast, easy application
    Add to watchlist
    Downloads
    Colour Silver (SR)
    Description A tubular shaped sleeving product that combines the protection of bonded aluminum and fiberglass into a single solution that is able to deflect radiant heat away from sensitive components inside the tube.
    Material Aluminium (AL), Glass-fibre (GF)
    Open, post termination (Yes/No) Yes
    PART DESCRIPTION BSHTTST212SR-AL/GF-SR
    Package Content 15.24m
    Package Content packed in pack
    Product Group Aluminum Laminated Fiberglass-High Temperature
    Type BSHTTST212SR
    UV-Stabilised No
    ⌀ D 2.5"
    Bundle ⌀ 2.54-60.3mm
    Bundle ⌀ max. 60.3mm
    Bundle ⌀ min. 2.54mm
    Diameter (D) 63.5mm
    Length (L) 15.2m
    Nominal ⌀ 2.5"
    Nominal ⌀ 63.5mm
    Wall (WT) 0.64mm
    Wall (WT) 0.025"
    CE Certification No
    CSA Certified No
    Halogen-free Yes
    Melting Point +2048 °F (1120 °C)
    Operating Temperature -60 °C to +255 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026442662
    Packaging 1 - Qty 1
    Packaging 1 - Type reel
    Packaging 1 - Weight (kg) 2.3kg
    Reel Length 50.0ft
    Reel Length 15.2m
    ETIM 7.0 Key EC001182
    ETIM 8.0 Key EC001182
    ETIM 9.0 Key EC001182
    UNSPSC Key 39131602
