09/06/2025

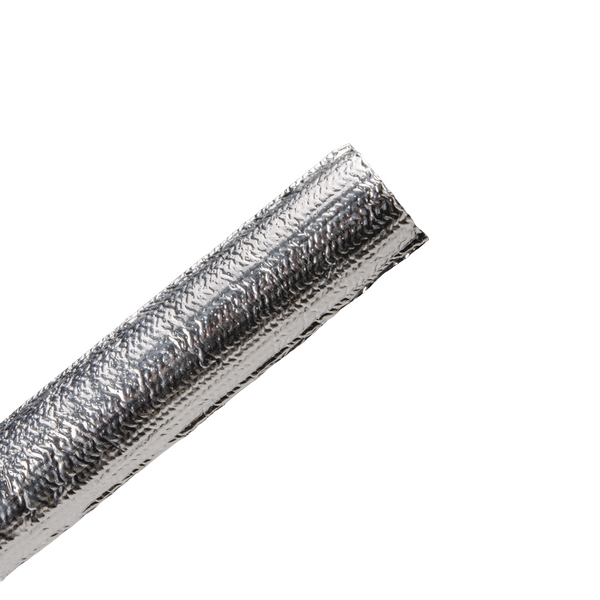

Aluminum Laminated Fiberglass-High Temperature
Art.-No. 170-03063 | BSHTTST34SR-AL/GF-SR |

Copied
Aluminum laminated fiberglass sleeving reflects radiant heat away from sensitive contents inside the tubing.

    • A layer of aluminum provides protection from chemicals, scraping, cuts and abrasion
    • Additional layer also provides insulation barrier for vulnerable wires and cables within high temperature environments
    • Cuts with ordinary scissors for fast, easy application
    Add to watchlist
    Downloads
    Colour Silver (SR)
    Description A tubular shaped sleeving product that combines the protection of bonded aluminum and fiberglass into a single solution that is able to deflect radiant heat away from sensitive components inside the tube.
    Material Aluminium (AL), Glass-fibre (GF)
    Open, post termination (Yes/No) Yes
    PART DESCRIPTION BSHTTST34SR-AL/GF-SR
    Pack Cont. 30.48m
    Package Content packed in pack
    Product Group Aluminum Laminated Fiberglass-High Temperature
    Type BSHTTST34SR
    ⌀ D 0.75"
    Bundle ⌀ 2.54-17.5mm
    Bundle ⌀ max. 17.5mm
    Bundle ⌀ min. 2.54mm
    Diameter (D) 19.1mm
    Length (L) 30.48m
    Nominal ⌀ 0.75"
    Nominal ⌀ 19.1mm
    Wall (WT) 0.64mm
    Wall (WT) 0.025"
    CE Certification No
    CSA Certified No
    Halogen-free Yes
    Melting Point +2048 °F (1120 °C)
    Operating Temperature -60 °C to +255 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised No
    Country of Origin MX
    GTIN-13 / EAN 4031026436562
    Packaging 1 - Type reel
    Packaging 1 - Weight (kg) 1.57kg
    Reel Length 100.0ft
    Reel Length 30.5m
    ETIM 7.0 Key EC001182
    ETIM 8.0 Key EC001182
    ETIM 9.0 Key EC001182
    UNSPSC Key 39131602
