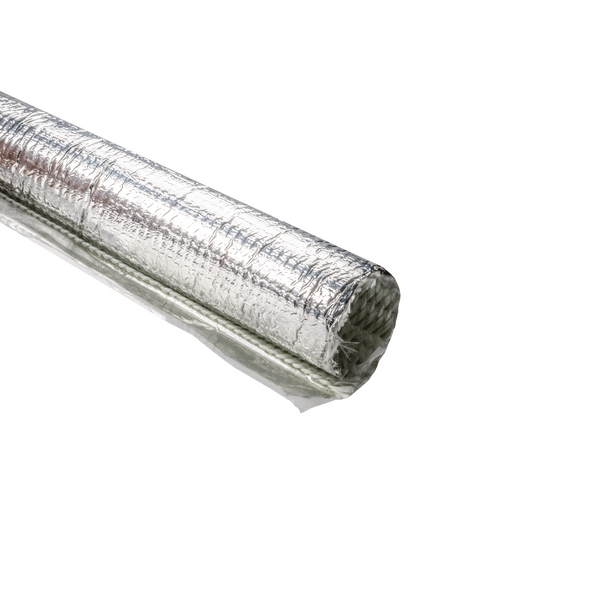

Braided Wrap—High Temperature
Art.-No. 170-03194 | BSHTTSW34SB-GF-AL-SR

Copied
Aluminum laminated fiberglass wrap sleeving combines the protection of bonded aluminum and fiberglass into a robust solution that deflects radiant heat away from sensitive wires and cables.

    • A layer of aluminum provides protection from chemicals, scraping, cuts and abrasion.
    • Additional layer also provides insulation barrier for vulnerable wires and cables within high temperature environments.
    • Cuts with ordinary scissors for fast, easy application.
    Add to watchlist
    Downloads
    Brand Family BSHTT-Series
    Color Silver (SR)
    Description Aluminum Laminated Fiberglass Wrap sleeving combines the protection of bonded aluminum and fiberglass into a robust solution that deflects radiant heat away from sensitive wires and cables. Wrap-around design allows for fast and easy installation and maintenance. Sold in 4-foot sticks.
    PART DESCRIPTION BSHTTSW34SB-GF-AL-SR
    Packaging Type pack
    Part No. 170-03194
    Short Desc. Braided Wrap, Aluminum Laminated Fiberglass, 4' Long Stick, 0.75" Dia, AL/GF, Silver, 15/box
    Type BSHTTSW34SB
    UV Resistant No
    Diameter (imperial) 0.75"
    Diameter (metric) 19.05mm
    Length (imperial) 4.0ft
    Length (metric) 1.22m
    Max. Bundle Diameter (imperial) 0.65"
    Max. Bundle Diameter (metric) 16.5mm
    Min. Bundle Diameter (imperial) 0.1"
    Min. Bundle Diameter (metric) 2.54mm
    Nominal Diameter (imperial) 0.75"
    Nominal Diameter (metric) 19.05mm
    Reel Length (imperial) 4.0ft
    Trade Size 3/4 "
    Wall Thickness (imperial) 0.042"
    Wall Thickness (metric) 1.06mm
    CE Certification No
    CSA Certified No
    Halogen Free Yes
    Material GF-AL
    Material Glass Fiber with Aluminium Foil (GF-AL)
    Operating Temperature -76°F to +491°F (-60°C to +255°C)
    Prop65 Warning No
    REACH Conformity Yes
    ROHS compliant Yes
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Customs Number (Schedule B) 7019905150
    Harmonized Tariff Schedule Code 7019.90.5150
    Pkg. Qty. 15
    Pkg. Qty. 15Pieces
