30/06/2025

Polyamide PA6.6
Art.-No. 170-03210 | BSPA66580-PA66-BK |

Copied

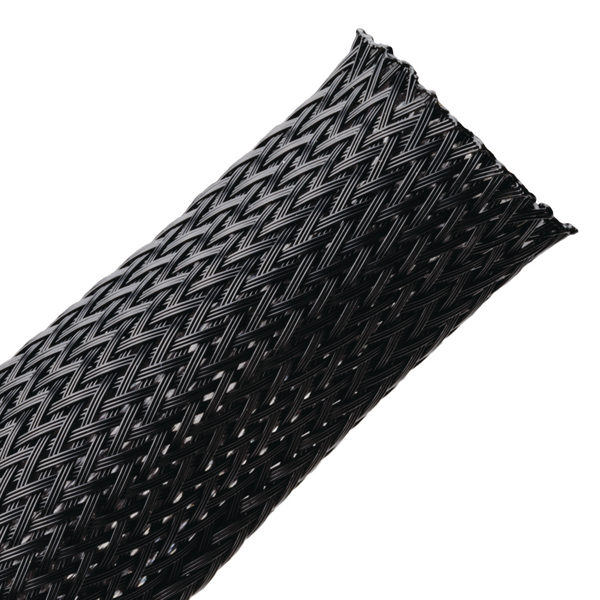

Expandable sleeving offers a tight, 12 mil braid that provides full coverage but will not rot or retain moisture.

    • Nylon monofilament construction weave offers a tight, 12 mil braid that provides full coverage but will not rot or retain moisture
    • Material performs well in wet applications and where abiding substrate has a smooth surface
    Add to watchlist
    Downloads
    Colour Black (BK)
    Description A pliable yet durable nylon sleeve that protects against cuts, abrasion and excessive wear caused by repetitive motion.
    Material Polyamide 6.6 (PA66)
    Open, post termination (Yes/No) Yes
    PART DESCRIPTION BSPA66580-PA66-BK
    Pack Cont. 30.48m
    Package Content packed in pack
    Product Group Polyamide PA6.6
    Type BSPA66580
    ⌀ D 0.625"
    Bundle ⌀ 2.54-15.2mm
    Bundle ⌀ max. 15.2mm
    Bundle ⌀ min. 2.54mm
    Diameter (D) 15.88mm
    Length (L) 30.48m
    Nominal ⌀ 0.62"
    Nominal ⌀ 15.88mm
    UV-Stabilised No
    Abrasion Resistance High
    CE Certification No
    CSA Certified No
    Halogen-free Yes
    Melting Point +255 °C
    Operating Temperature -45 °C to +150 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin US
    GTIN-13 / EAN 4031026498713
    Packaging 1 - Type reel
    Packaging 1 - Weight (kg) 0.5kg
    Reel Length 100.0ft
    Reel Length 30.48m
    ETIM 7.0 Key EC001182
    ETIM 8.0 Key EC001182
    ETIM 9.0 Key EC001182
    UNSPSC Key 39131602
