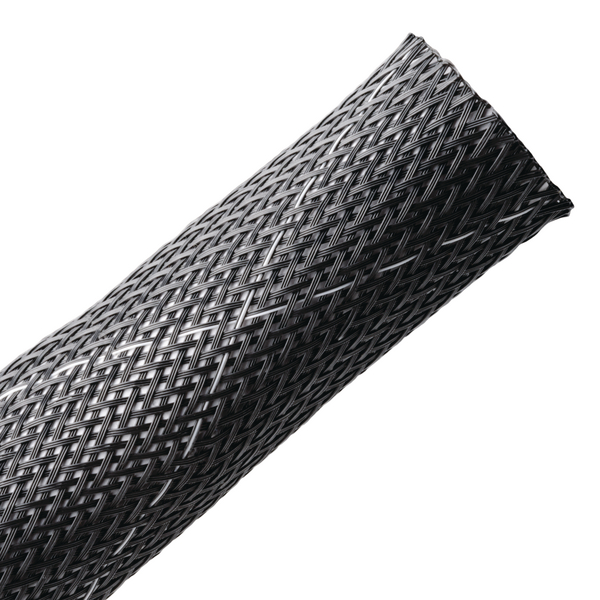

Braided Sleeving - Flame Retardant
Art.-No. 170-03094 | BSPFR1140B-PET-BK

Copied
Polyester material is specially treated for flame retardance.

    • Treated polyester material contains a combustion inhibitor for use in applications where flame retardancy is required.
    • Braided design allows sleeving to expand by 150% to accommodate variations in wire bundle and eases installation.
    Add to watchlist
    Downloads
    Brand Family BSP-Series
    Color Black (BK)
    Description A flame retardant woven (threaded) polyester sleeving that is resistant to cuts and abrasion, and contains a combustion inhibitor allowing it to achieve a UL and CSA flame resistance rating of VW-1. Contains white tracer thread for easy identification. This fire extinguishing braided sleeving is ideal for electronic and high tech applications because of its lightweight and durable qualities.
    PART DESCRIPTION BSPFR1140B-PET-BK
    Packaging Type pack
    Part No. 170-03094
    Short Desc. Braided Sleeving, Expandable, Flame Retardant, 1.25" Dia, PET, Black, 250 ft/bulk reel
    Type BSPFR1140B
    UV Resistant No
    Diameter (imperial) 1.25"
    Diameter (metric) 31.8mm
    Length (imperial) 250.0ft
    Length (metric) 76.2m
    Max. Bundle Diameter (imperial) 1.75"
    Max. Bundle Diameter (metric) 44.5mm
    Min. Bundle Diameter (imperial) 0.75"
    Min. Bundle Diameter (metric) 19.1mm
    Nominal Diameter (imperial) 1.25"
    Nominal Diameter (metric) 31.8mm
    Recommended Cutting Tools Hot Knife
    Reel Length (imperial) 250.0ft
    Trade Size 1-1/4 "
    CE Certification No
    CSA Certified No
    Flammability UL 224 VW-1, Mil-202, FAR 25, FMVSS 302
    Halogen Free Yes
    Material PET
    Material Polyester (PET)
    Operating Temperature -94°F to +257°F (-70°C to +125°C)
    Prop65 Warning No
    REACH Conformity Yes
    ROHS compliant Yes
    UL File Number [Logo] E147924 [RU]
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) Yes
    Customs Number (Schedule B) 5808100000
    Harmonized Tariff Schedule Code 5808.10.7000
    Packaging 1 - Weight (kg) 1.8kg
    Pkg. Qty. 250ft
    Pkg. Qty. 76.20m
