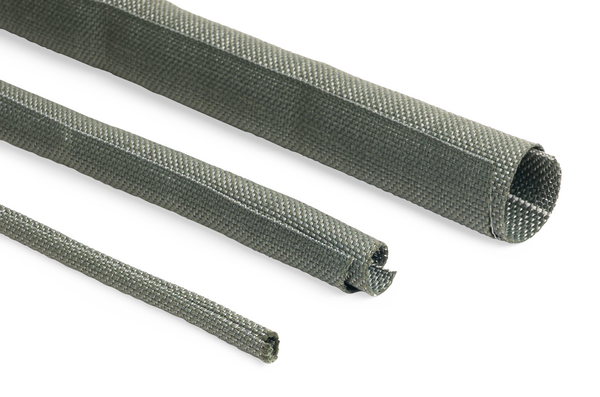

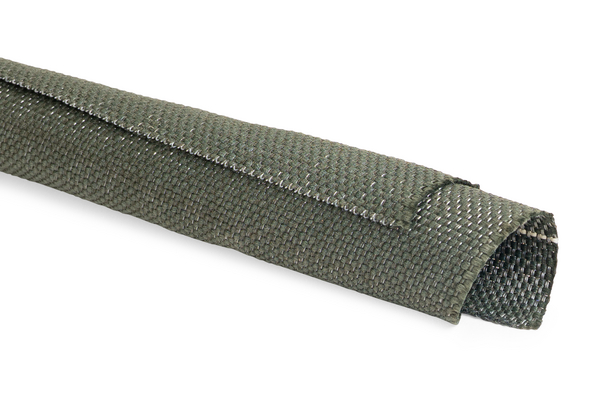

Self-closing meta-aramid sleeving, abrasion resistant, water and oil repellent
Art.-No. 170-01287
| Twist-In-NX6-40-GN-MPIA/PPS-GN
|
Copied
- Self-closing sleeve made of meta-aramid and PPS
- Provides high-quality protection against abrasion
- Water and oil repellent
- High temperature resistance (200°C)
- Can be cold cut without fraying
- Quick and easy to install and remove
- Ideal for retro-fitting
- Allows for inspection and maintenance
More products in this product group:

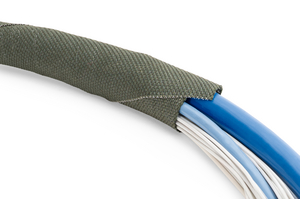

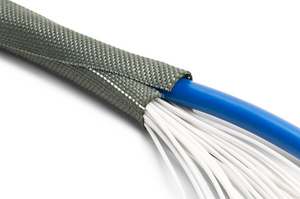

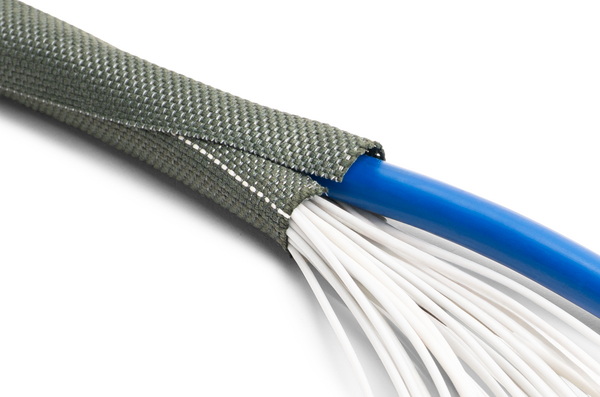

| Application | Helagaine Twist-In-NX6 is used to bundle and protect cables in harsh environments, particularly in the aeronautical industry, but not exclusively. It provides high-quality abrasion resistance and thanks to its water and oil repellent treatment, it also effectively protects harnesses from fluid splashes. |
| Application Method | For optimum cable protection including flexibility, we recommend that a filling level of 75% is not exceeded. |
| Colour | Green (GN) |
| Key product features | self closing, for harsh environments, high temperature resistant, abrasion resistant, fluid resistant, allows visual inspection, releasable |
| Material | Meta-Aramide (MPIA), Polyphenylene Sulfide (PPS) |
| Open, post termination (Yes/No) | Yes |
| PART DESCRIPTION | Twist-In-NX6-40-GN-MPIA/PPS-GN |
| Package Content | 25m |
| Package Content packed in | reel |
| Product Family | Helagaine Twist-In-NX6 |
| Product Group | Self-closing meta-aramid sleeving |
| Short Description | Self-closing meta-aramid sleeving, abrasion resistant, water and oil repellent |
| Type | Twist-In-NX6-40-GN |
| Weight/Unit | 0.09kg |
Download
| Country of Origin | FR |
| Customs Number | 5609000000 |
| GTIN-13 / EAN | 4031026807089 |
| Packaging 1 - Height (m) | 0.188m |
| Packaging 1 - Length (m) | 0.37m |
| Packaging 1 - Qty | 25 |
| Packaging 1 - Type | reel |
| Packaging 1 - Volume (m³) | 0.0257372m³ |
| Packaging 1 - Weight (kg) | 2.68kg |
| Packaging 1 - Width (m) | 0.37m |
| Packaging 3 - Height (m) | 0.375m |
| Packaging 3 - Length (m) | 0.375m |
| Packaging 3 - Qty | 50 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.0527m³ |
| Packaging 3 - Weight (kg) | 5.91kg |
| Packaging 3 - Width (m) | 0.375m |
| Packaging 4 - Height (m) | 1.275m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 900 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.224m³ |
| Packaging 4 - Weight (kg) | 127.38kg |
| Packaging 4 - Width (m) | 0.8m |
| Reel Diameter | 370mm |
| Reel Length | 25m |
| Reel Width | 188mm |
