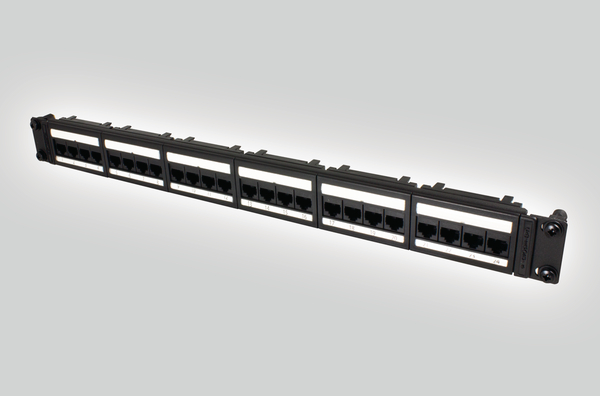

CAT6 Unshielded 24 Port Panel
Art.-No. 853-45004 | 1/2408IDC G6/BK |

Copied
1U 24 Port Category 6 Panel

    This product is not available anymore.
    • Unshielded 1U 24 ports
    • Flat LSA Punch Down Presentation
    • 568A/B wiring options
    • Double labelling fields
    • Supplied with Rack Snap mounting fixings
    • Exceptional Category 6 performance
    • Part of the HellermannTyton 25 year system warranty program
    • Backwards compatible with voice applications
    • Optional cable management
    Show more
    Add to watchlist
    Colour Black (BK)
    Description HellermannTytons Category 6 product range is designed and manufactured to offer exceptional performance and reliability, supporting any voice and data protocol capable of running over a Category 6 system. Available in 1U 24 port and 2U 48 port presentations. Each panel is constructed of 6 modular units, each offering 4 RJ45 ports. There are two labelling fields as standard with a magnifying lens for clear identification. Each panel is supplied with Rack Snap fixings as standard.
    PART DESCRIPTION 1/2408IDC G6/BK
    Panel Fixing Method rack snap
    Performance Category Category 6 (Class E)
    Port count 24
    Product Family 1U Flat
    Product Group CAT6 Unshielded 24 Port Panel
    Technical Description The Category 6 Patch Panel is manufactured from black powder coated mild steel with a 4 port modular PCB assembly jack presentation which can be removed and replaced if required. Each PCB module is tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568-C Category 6. Each panel is supplied with a comprehensive T568A/B wiring guide label on the rear of the modules to ensure error free terminations. Category 6 panels are also backwards compatible and will support cat5e & voice applications.
    Type 1/2408IDC G6/BK

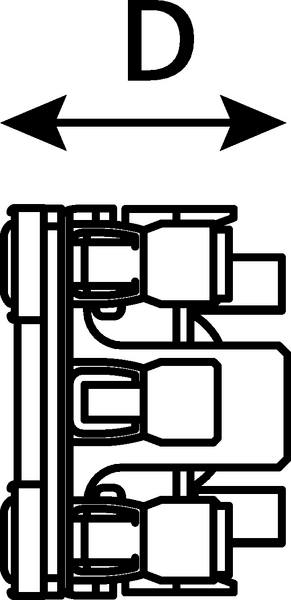

    Depth (D) 31mm
    Height (H) 44mm
    Height, Units 1U
    Width (W) 483mm
    Country of Origin GB
    Dimensions W x H x D 483 mm x 44 mm x 31 mm
    GTIN-13 / EAN 5022660848049
    Packaging 1 - Weight (kg) 0.70kg
    ETIM 7.0 Key EC000264
    ETIM 8.0 Key EC000264
    ETIM 9.0 Key EC000264
