19/03/2024

2U Flat
Art.-No. 853-45009 | 2/4808IDC G6/BK Details

This product is not available anymore.
  • Unshielded 2U 48 ports
  • Flat LSA Punch Down Presentation
  • 568A/B wiring options
  • Double labelling fields
  • Supplied with Rack Snap mounting fixings
  • Exceptional Category 6 performance
  • Part of the HellermannTyton 25 year system warranty program
  • Backwards compatible with cat5e & voice applications
  • Optional cable management
Show more
Colour Black (BK)

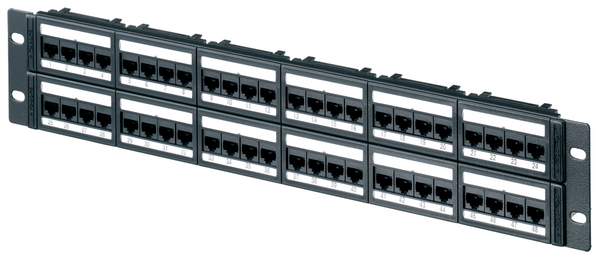

Description HellermannTytons Category 6 product range is designed and manufactured to offer exceptional performance and reliability, supporting any voice and data protocol capable of running over a Category 6 system. Available in 1U 24 port and 2U 48 port presentations. Each panel is constructed of 6 modular units, each offering 4 RJ45 ports. There are two labelling fields as standard with a magnifying lens for clear identification. Each panel is supplied with Rack Snap fixings as standard.
Panel Fixing Method rack snap
PART DESCRIPTION 2/4808IDC G6/BK
Performance Category Category 6 (Class E)
Port count 48
Product Family 2U Flat
Product Group CAT6 Unshielded 48 Port Panel
Technical Description The Category 6 Patch Panel is manufactured from black powder coated mild steel with a 4 port modular PCB assembly jack presentation which can be removed and replaced if required. Each PCB module is tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568-C Category 6. Each panel is supplied with a comprehensive T568A/B wiring guide label on the rear of the modules to ensure error free terminations. Category 6 panels are also backwards compatible and will support cat5e & voice applications.
Depth (D) 31mm
Height (H) 88mm
Height, Units 2U
Width (W) 483mm

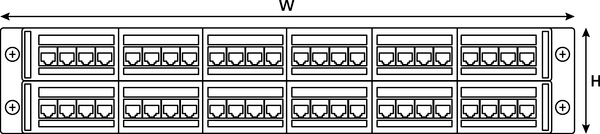

Dimensions W x H x D 483 mm x 88 mm x 31 mm
GTIN-13 / EAN 5022660848094
Packaging 1 - Weight (kg) 1.0kg
ETIM 8.0 Key EC000264
ETIM 9.0 Key EC000264
