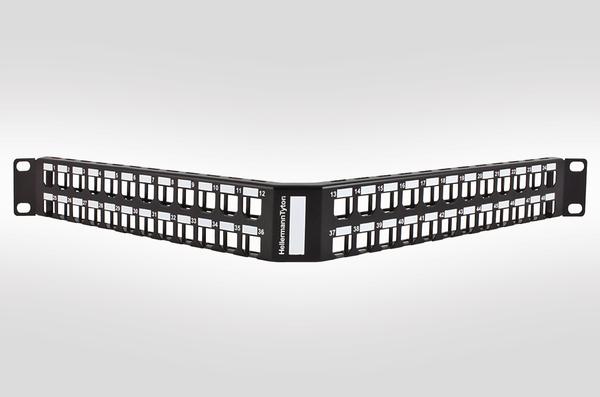

1U Angled
Art.-No. 853-50052 | GSTAPP-1U48SC Details

  • Industry standard keystone apertures
  • Angled design provides increased rack capacity
  • Jack colours and icons (C6A, C6, C5e) are visible when in panel
  • Clear screen printed labelling fields
  • Central panel labelling for each U space
  • Supplied with 12 - 24 Rack Screws
  • Optional rear cable manager available
  • Also available in 2U 72 port, 2U 48 port or 1U 24 port configurations
Show more
Colour Black (BK)
Description The HellermannTyton range of Modular Keystone panels offer exceptional flexibility and performance in an angled or flat format in 2U 48 port, 2U 72 port, 1U 48 port and 1U 24 port configurations. The Modular Keystone panels offer industry standard apertures and are compatible with the HellermannTyton range of keystone jacks. The use of individual keystone jacks offers a balanced system performance and also provides simple installation and maintenance allowing individual jack to be removed if required. The angled presentation increases rack capacity by allowing patchcords to be directed to the vertical cable management and aids correct cable bend radius. The Modular Keystone panel is supplied with Rack Snap mountings as standard. Optional rear cable manager is also available and is sold separately.
Pack Cont. 1pc.
Package Content packed in box
Panel Fixing Method 12 – 24 ack screws
PART DESCRIPTION GSTAPP-1U48SC
Performance Category Modular
Port count 48
Product Family 1U Angled
Product Group Modular Unshielded 48 Port Panel
Technical Description Manufactured from black powder coated mild steel. The angled presentation increases rack capacity by allowing patchcords to be directed to the vertical cable management and aids correct cable bend radius. The Modular panels are designed to accept HellermannTyton Connectivity's unshielded keystone jacks which are available in CAT6A, CAT6 & CAT5e. They are supplied as standard unloaded but include rack snaps for fast cabinet installation. The rear cable management bar is sold separately.

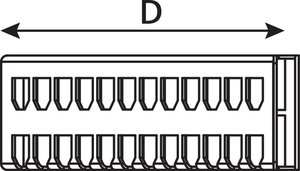

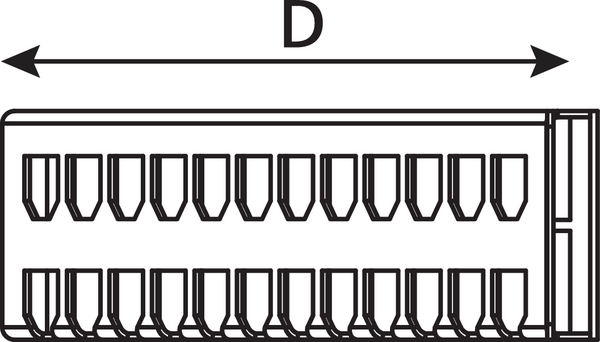

Depth (D) 106mm
Height (H) 44mm
Height, Units 1U
Width (W) 483mm
Specifications
UL Listed (US and Canada) Yes
UL Recognized (US and Canada) No
UL-File Number E216789
Country of Origin GB
Dimensions W x H x D 483 mm x 44 mm x 106 mm
GTIN-13 / EAN 5022660122422
ETIM 8.0 Key EC000264
ETIM 9.0 Key EC000264
UNSPSC Key 43223309
