1U Flat
Art.-No. 853-50030 | GSTPP-1U24RS Details

This product is not available anymore.
  • Unshielded 24 ports
  • Flat 1U presentation
  • Screen printed labelling fields & port numbers
  • Accepts HT Connectivity unshielded keystone jacks
  • Supplied with Rack Snaps
  • Optional cable management bar
Show more
Colour Black (BK)
Description The HellermannTyton range of Modular Keystone panels offer exceptional flexibility and performance in an angled or flat format in 2U 48 port, 2U 72 port, 1U 48 port and 1U 24 port configurations. The Modular Keystone panels offer industry standard apertures and are compatible with the HellermannTyton range of keystone jacks. The use of individual keystone jacks offers a balanced system performance and also provides simple installation and maintenance allowing individual jack to be removed if required. The Modular Keystone panel is supplied with Rack Snap mountings as standard. Optional rear cable manager is also available and is sold separately.
Package Content packed in box
Panel Fixing Method rack snap
PART DESCRIPTION GSTPP-1U24RS
Performance Category Modular
Port count 24
Product Family 1U Flat
Product Group Modular Unshielded 24 Port Panel
Technical Description Manufactured from black powder coated mild steel. Each panel is designed to accept HellermannTyton Connectivity's unshielded keystone jacks which are avilable in CAT6A, CAT6 & CAT5e They are supplied as standard unloaded but include rack snaps for fast cabinet installationm. The rear cable management bar is sold seperately

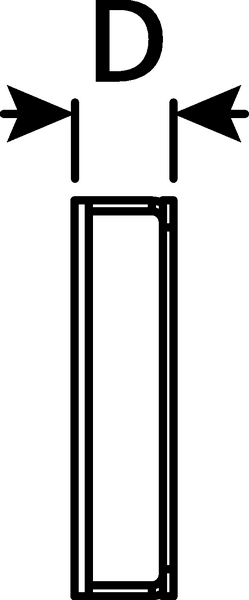

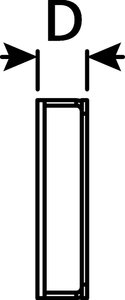

Depth (D) 11mm
Height (H) 44mm
Width (W) 483mm
Country of Origin GB
Dimensions W x H x D 483 mm x 44 mm x 11 mm
GTIN-13 / EAN 5022660122255
ETIM 8.0 Key EC000264
ETIM 9.0 Key EC000264
