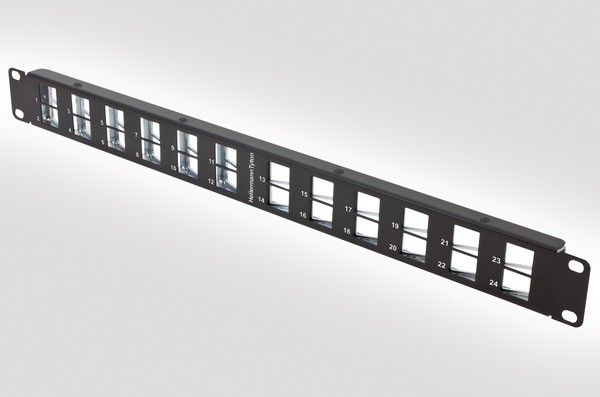

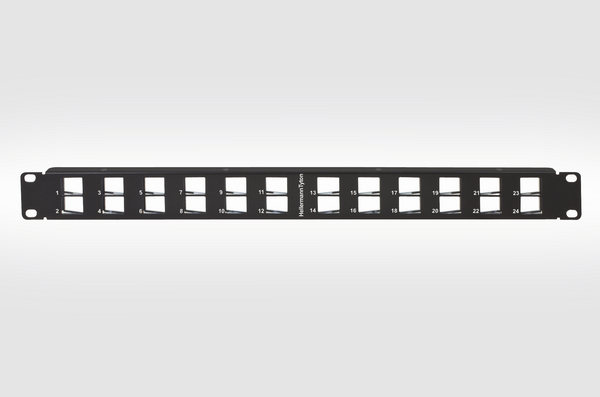

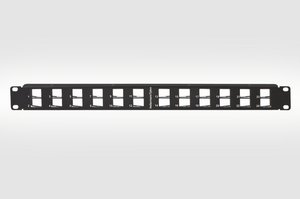

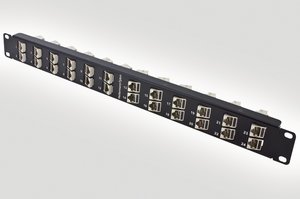

1U Flat Angled
Art.-No. 853-55007 | HT-FAPP-1U24RS Details

This product is not available anymore.
  • 1U 24 port 19” rack mountable
  • Flat modular format with 45° angled keystone presentation
  • 24 ports divided left and right to support cable dressing
  • Reduces the need for 19” cable management bars
  • Directs patch leads to cabinet vertical managers
  • Increases cabinet port density
  • Can be used for Shielded and Unshielded applications
  • Supplied with Rack Snap cabinet fixings & earth wire
  • Compatible rear management bar available
Show more
Colour Black (BK)
Description The flat ‘Angled Module’ patch panel from HellermannTyton is a 1U panel that presents 24 keystone jacks at a 45 degree angle. The panel can be used in a shielded or unshielded system and accepts all HellermannTyton keystones jacks. The panel has been designed with 12 ports dressed to the left and 12 ports dressed to the right. The 45 degree angle allows patch leads to be routed out to the side management within the cabinet, reducing the need to use additional cable managers and maximising rack space and port density. The 45 degree angle also protects the patch lead cables providing optimum bend radii for high performance.
Package Content packed in box
PART DESCRIPTION HT-FAPP-1U24RS
Performance Category Modular
Port count 24
Product Family 1U Flat Angled
Product Group Modular Shielded Angled 1U 24 Port
Technical Description Manufactured from black powder coated mild steel. The Modular panels are designed to accept HellermannTyton Connectivity's shielded keystone jacks which are available in CAT6A & CAT6. They are supplied as standard unloaded but include rack snaps for fast cabinet installation. The rear cable management bar is sold separately.
Depth (D) 15mm
Height (H) 44mm
Width (W) 483mm
Country of Origin GB
Dimensions W x H x D 483 mm x 44 mm x 15 mm
GTIN-13 / EAN 5022660165399
ETIM 8.0 Key EC000264
ETIM 9.0 Key EC000264
