19/03/2024

1U Right Angled
Art.-No. 853-50021 | HT2408PB-UC6-M/BK Details

This product is not available anymore.
  • Unshielded 1U 24 ports
  • Right Angled LSA Punch Down Presentation
  • 568A/B wiring options
  • Numbered Ports
  • Supplied with Rack Snap mounting fixings
  • Exceptional Category 6 performance
  • Part of the HellermannTyton 25 year system warranty program
  • Backwards compatible with cat5e and voice applications
  • Integral rear cable rear managment
Show more
Colour Black (BK)
Panel Fixing Method rack snap
PART DESCRIPTION HT2408PB-UC6-M/BK
Performance Category Category 6 (Class E)
Port count 24
Product Family 1U Right Angled
Product Group CAT6 Unshielded 24 Port Panel
Technical Description HellermannTytons Category 6 product range is designed and manufactured to offer exceptional performance and reliability, supporting any voice and data protocol capable of running over a Category 6 system. The right angled presentation of these panels offer a stable and easy termination platform, which also acts as the rear cable manager. Available in 1U 24 port and a high density 1U 48 port variation. Each panel is supplied with Rack Snap fixings as standard.

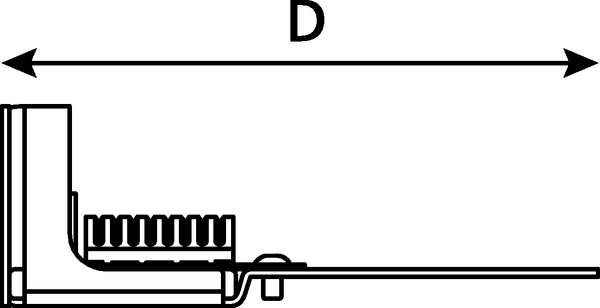

Depth (D) 132mm
Height (H) 44mm
Height, Units 1U
Width (W) 483mm
Dimensions W x H x D 483 mm x 44 mm x 132 mm
GTIN-13 / EAN 5022660849183
Packaging 1 - Weight (kg) 1.62kg
ETIM 7.0 Key EC000000
ETIM 8.0 Key EC000000
ETIM 9.0 Key EC000000
