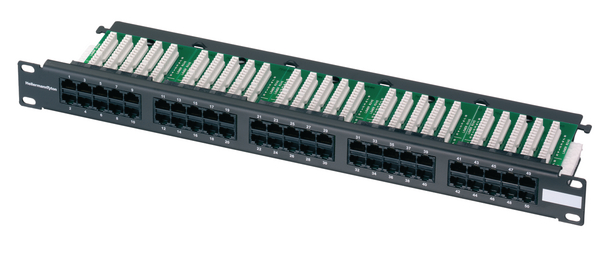

Eco High Density Voice Panel : PP110C350

Eco High Density Voice Panel , Article number: 853-00092

Features

• High density voice panel 50 ports per 1U
• Built in rear cable management
• Exceeds all ISO/IEC 11801 and ANSI/TIA/EIA 568-C.2 performance standards
• Manufactured to exacting ISO 9001 quality standards
• Accepts Krone style punch down tools
• Sturdy robust construction
• RoHS compliant - lead free
• All 4 pairs presented

Application

• Jack life min. 1000 insertions
• Max. of two wires per contact (same gauge)
• Wire gauge 22-26 AWG
• IDC life up to 50 re-terminations

Application 2 The High Density Voice panel is designed to support any existing voice infrastructure running over a Cat3 system.
Colour Black (BK)
Description The Eco High Density Voice panel offers exceptional Cat3 performance whilst presenting 50 RJ45 voice ports in 1U of space. The Panel enables vertical IDC punch down and has built in rear cable management to provide support and protection for the cable.
Features and Benefits This patch panel is Category 3 rated and backwards compatible to “voice grade”. It is available as a 1 rack unit, 50 port right-angled panel accepting 4 pairs per RJ-45 circuit. Blocks are Krone style Punchdown.
Pack Cont. 1pc.
Package Quantity per box
PART DESCRIPTION PP110C350
Performance Category Category 3 (Class C)
Port count 50
Product Family Eco High Density Voice Panel
Product Group Eco High Density Voice Panel
Technical Description The High Density Voice panel presents 50 RJ45 voice ports in 1U of space. Eco High Density Voice panel has been tested to exceed all ISO/IEC 11801 and ANSI/TIA/EIA 568-C.2 Cat3 performance standards.
Height, Units 1U
EAN / GTIN 5022660836411
UNSPSC Key 43223309
