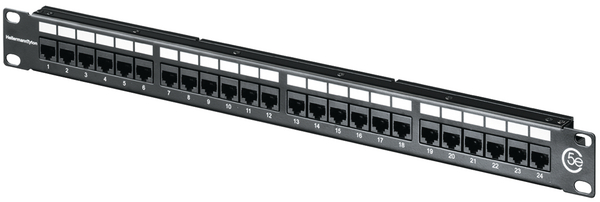

Universal 110 Category 5e PP110C5E24RS

1U 24 Port Panel, Article number: 853-20108

Features

  • Exceeds Category 5e performance standards
  • Configured for T568A and T568B wiring
  • 110 punch down IDC
  • Write-on labels provided for easy identification
  • Optional rear cable manager available
  • Available with or without Rack Snaps
  • Backward compatible with Category 5 and voice applications

Certifications & Approvals

Colour Black (BK)

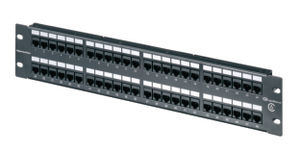

Description The Universal 110 Category 5e range of patch panels offer exceptional performance and are also available in 1U 48 port, 2U 48 port and 12 port vertical configurations. The 1U 24 port panel is constructed of 4 modular units, each offering 6 RJ45 ports allowing for any of the 6 port modules to be replaced if damaged at any stage during installation. The Universal 110 1U 24 Port Panel is supplied with or without Rack Snap mounting fixings and a rear cable manager is also available. The Universal 110 Category 5e products are designed to support any data or voice protocol that is capable of running over a Category 5e cabling system.

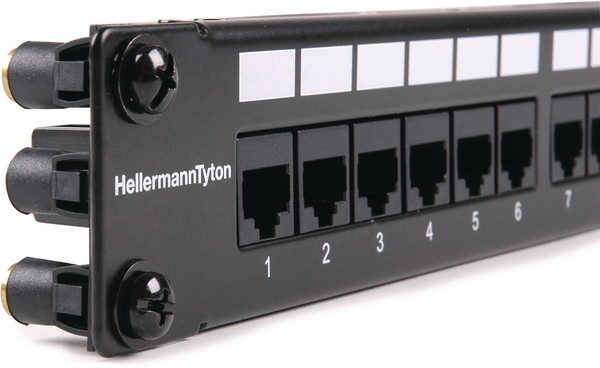

Features and Benefits The 24 and 48 port Universal patch panels are also available with Rack-Snap Inserts, a revolutionary new patch panel fixing which drastically reduces installation time. • Preassembled with the Rack-Snap inserts • Eliminates the need for cage nuts • Snap into standard square holes in the cabinet, making installation easy without the need for tools • Patch panel can be taken out of the box and snapped directly into the cabinet • Fits into most manufacturers EIA-310-D standard racks or cabinets with square holes • Rack-Snap inserts not sold separately
Pack Cont. 1
Package Quantity per box
Panel Fixing Method rack snap
PART DESCRIPTION PP110C5E24RS
Performance Category Category 5E (Class D)
Port count 24
Product Family 1U 24 Port Panel
Product Group Universal 110 Category 5e

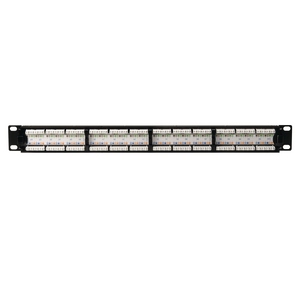

Technical Description The panels are manufactured with 110 IDC punch down blocks and are supplied with a clear plastic channel which protects the PCB and allows for easy viewing of the wiring label. The panel is screen printed and offers write-on labelling fields for easy port identification. Each PCB module is tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568-C Category 5e. The Universal 110 Category 5e 1U 24 Port Panel offers backward compatibility with Category 5 and voice products.

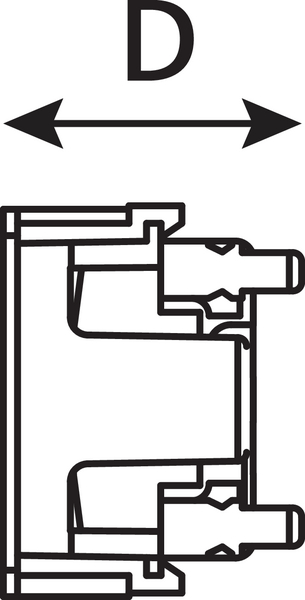

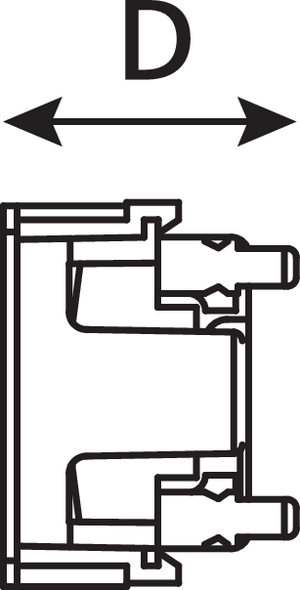

Depth (D) 28.0mm
Depth D2 (metric) 28.0mm
Height (H) 44.0mm
Height, Units 1U
Width (W) 483.0mm
Specifications
UL Listed (US and Canada) Yes
UL Recognized (US and Canada) No
UL-File Number E216789
Wiring 568A
Dimensions W x H x D 483.0 mm x 44.0 mm x 28.0 mm
EAN / GTIN 5022660839689
UNSPSC Key 43223309
