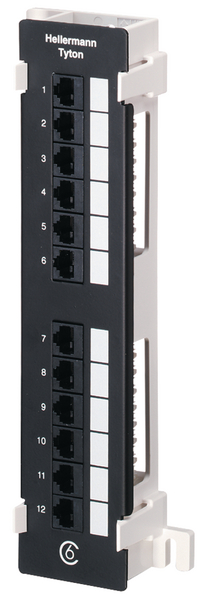

Vertical 12 Port Panel
Art.-No. 853-50001 | PP110C612V Details

  • Exceeds Category 6 performance standards
  • 110 IDC punch down for easy termination
  • Configured for T568A and T568B wiring
  • Stand-alone wall mountable panel for quick installation
  • Fits into most EIA-310-D standard racks or cabinets with square holes
  • Write-on labels provided for easy identification
  • Backward compatible to Category 5e and Category 5
Show more
Colour Black (BK)
Description The Vertical Universal 110 Category 6 patch panel offers exceptional performance and are also available in a 1U 24 port, 1U 48 port right angled and 2U 48 port versions. The panel is constructed of 2 modular units, each offering 6 RJ45 ports allowing for any of the 6 port modules to be replaced in the case of port damage or failure. The Universal 110 Category 6 products are designed to support any data or voice protocol that is capable of running over a Category 6 cabling system.
Pack Cont. 1pc.
Package Content packed in box
PART DESCRIPTION PP110C612V
Performance Category Category 6 (Class E)
Port count 12
Product Family Vertical 12 Port Panel
Product Group Universal 110 Category 6
Technical Description The panels design allows it to be used as stand-alone wall mounted panel as well as being compatible with most EIA-310-D standard racks or cabinets with square holes and the vertical IDC punch down ensures ease of installation. The panels are manufactured with 110 punch down IDC blocks and are supplied with a clear plastic channel which protects the PCB and allows easy viewing of the wiring label. The panel is screen printed and offers write-on labelling fields for easy port identification. Each PCB module is tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568-C Category 6. The Universal 110 Category 6 Panels offer backward compatibility with Category 5e, Category 5 and voice products.

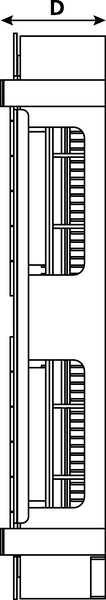

Depth (D) 47.0mm
Depth D2 (metric) 47.0mm

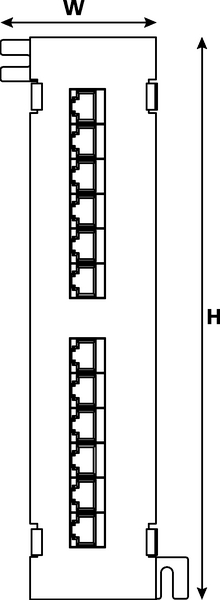

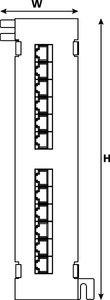

Height (H) 85.0mm
Height, Units 1U

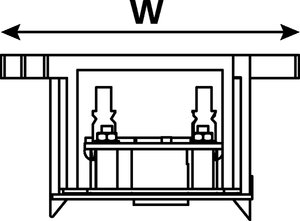

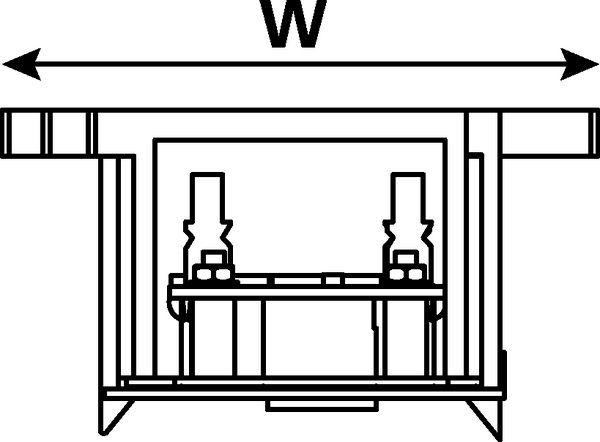

Width (W) 255.0mm
Specifications
UL Listed (US and Canada) Yes
UL Recognized (US and Canada) No
UL-File Number E216789
Wiring 568A
Country of Origin GB
Dimensions W x H x D 255.0 mm x 85.0 mm x 47.0 mm
GTIN-13 / EAN 5022660849022
ETIM 8.0 Key EC000264
ETIM 9.0 Key EC000264
UNSPSC Key 43223309
