Univeral 110 Category 6 : PP110C648

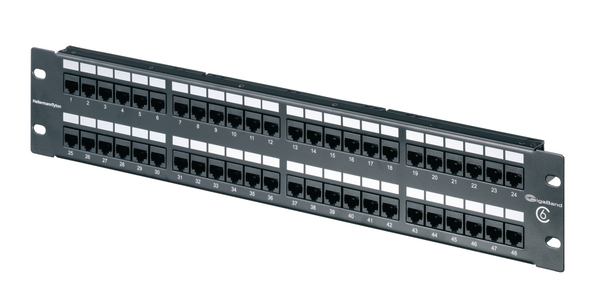

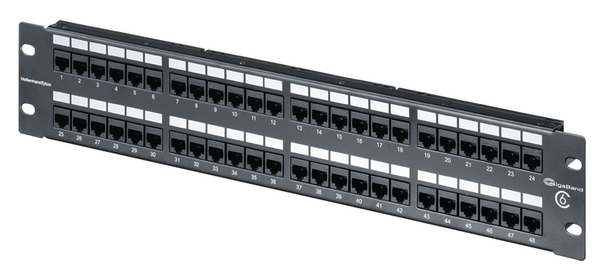

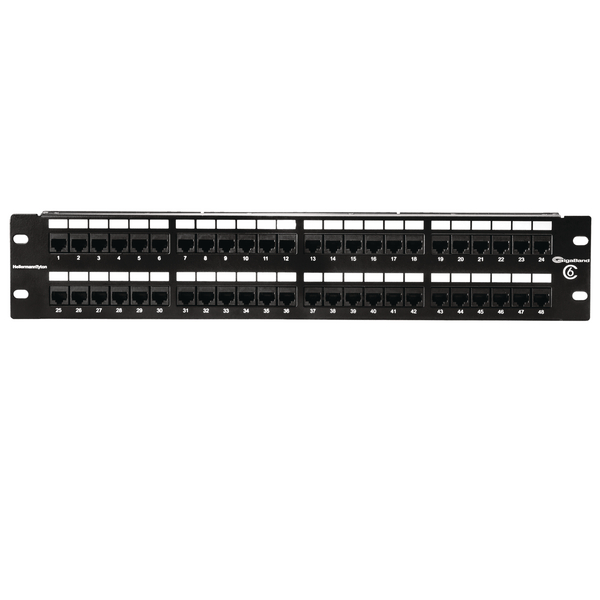

2U 48 Port Panel, Article number: 853-50003


  • Exceeds Category 6 performance standards
  • Configured for T568A and T568B wiring
  • 110 punch down IDC
  • Write-on labels provided for easy identification
  • Optional rear cable manager available
  • Available with or with Rack Snaps
  • Backward compatible to Category 5e and Category 5

Certifications & Approvals

Colour Black (BK)
Description The Universal 110 Category 6 range of patch panels offer exceptional performance and are also available in 1U 24 port, 1U 48 port right angled and 12 port vertical versions. The 2U 48 Port Panel is constructed of 8 modular units, each offering 6 RJ45 ports allowing for any of the 6 port modules to be replaced in the case of port damage or failure. The Universal 110 2U 48 Port Panel is supplied with or with Rack Snap mounting fixings and an optional rear cable manager is also available. The Universal 110 Category 6 products are designed to support any data or voice protocol that is capable of running over a Category 6 cabling system.
Pack Cont. 1pc.
Package Quantity per box
Performance Category Category 6 (Class E)
Port count 48
Product Family 2U 48 Port Panel
Product Group Univeral 110 Category 6
Technical Description The Universal 110 Category 6 range of panels is available in standard 1U 24 port, 1U 48 port, 2U 48 port and a vertical 12 port configuration. The panels are manufactured with 110 punch down IDC blocks and are supplied with a clear plastic channel which protects the PCB and allows easy viewing of the wiring label. The panel is screen printed and offers write-on labelling fields for easy port identification. Each PCB module is tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568-C Category 6. The Universal 110 Category 6 Panels offer backward compatibility with Category 5e, Category 5 and voice products.

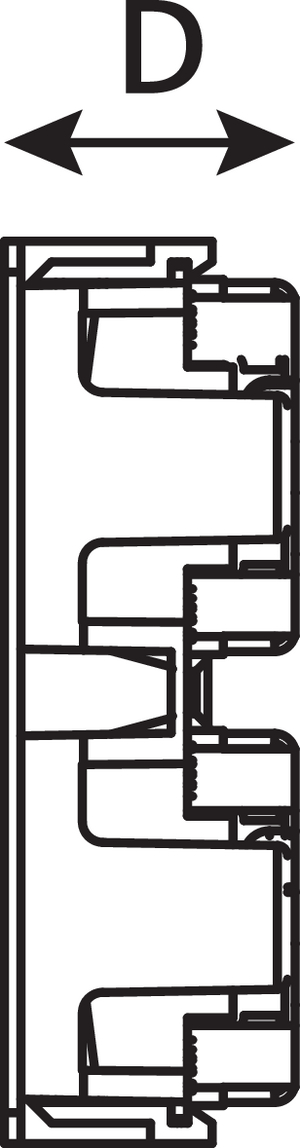

Depth (D) 29.0mm
Height (H) 88.0mm
Height, Units 2U
Width (W) 483.0mm
UL Listed (US and Canada) Yes
UL Recognized (US and Canada) No
UL-File Number E216789
Wiring 568A

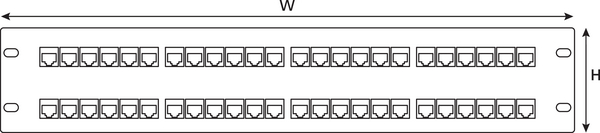

Dimensions W x H x D 483.0 mm x 88.0 mm x 29.0 mm
EAN / GTIN 5022660849046
UNSPSC Key 43223309
