19/03/2024

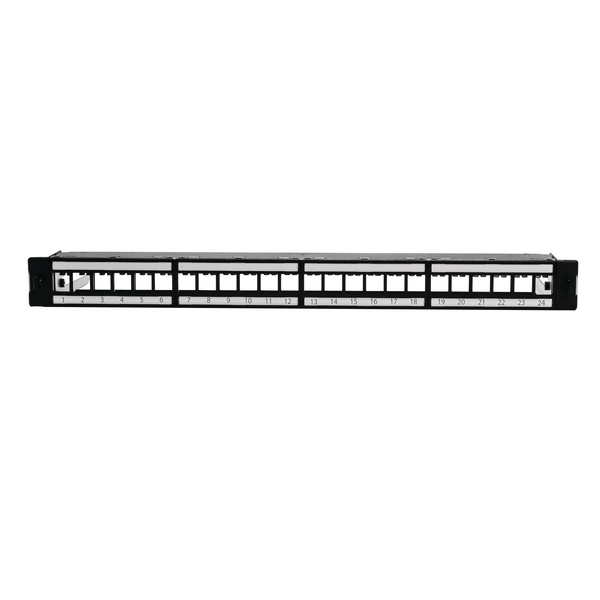

PP24SMOD6ASRS : PP24SMOD6ASRS
Art.-No. 853-55003 | PP24SMOD6ASRS Details

  • 24 ports in 1U
  • Exceeds ISO/EIA 11801:2002 amendment 1.1 and ANSI/TIA/EIA 568 - C.2 standards
  • Manufactured to exacting ISO 9001 quality standards
  • Dual labelling fields
  • Uncompromised support for 10G
  • 360° shielding ensures all round protection from Alien crosstalk
  • Available as either sliding or fixed panels
Show more
Pack Cont. 1pc.
PART DESCRIPTION PP24SMOD6ASRS
Technical Description The Deca10 copper solution is designed using S-FTP Cat6A cable which provides 360° shielding and eliminates alien crosstalk. The Deca10 Cat6A panel accommodates 24 Cat6A Keystone Jack allowing 24 Cat6A connections in 1U. The integral earthing plate grounds each Keystone Jack helping to guarantee 10G performance by giving continuity of the 360° shielding. Tested to exceed ISO/EIA 11801:2002 amendment 1.1 and ANSI/TIA/EIA 568 - C.2 standards, the Deca10 Cat6A panel offers backward compatibility with Cat6, Cat5E, Cat5 and voice products.
Height (H) 44.0mm
Country of Origin GB
Dimensions W x H x D 44.0 mm x
GTIN-13 / EAN 5022660991882
ETIM 8.0 Key EC000264
ETIM 9.0 Key EC000264
UNSPSC Key 39121444
