TT230SM Printer, Caddy, Ribbon, Software, Case
???product.artNr??? 556-00256 | TT230SMC KIT-PL-BK

300 dpi print head for high resolution printing.
Label holder included for easy loading of any size media.
Lightweight with a small footprint for easy transport to jobs sites or around the shop.
LCD user interface for easier setup, diagnostics and adjustments.
Ethernet ready for easy network connectivity.
Print speeds up to 3 in (76.2mm) per second for fast label production.
2mb flash/8mb DRAM for accepting large label files that require a lot of data.
Highly accurate sensor means there is no need to calibrate during label changes and eliminates most common printer errors.

Brand Family	TT230
Color	Black (BK)

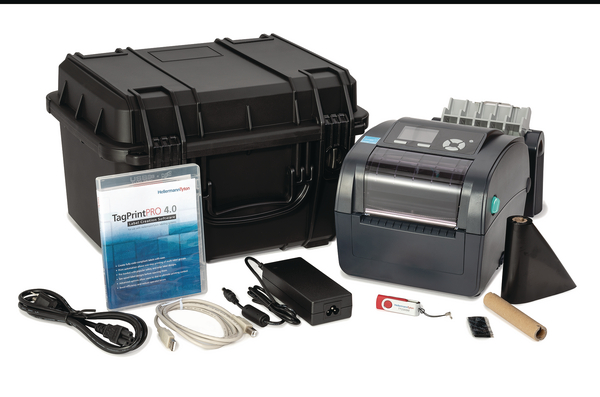

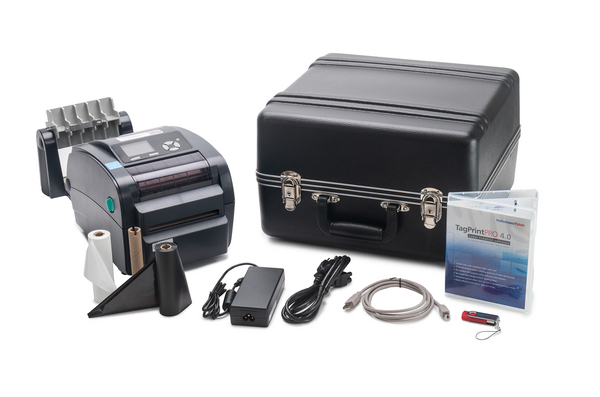

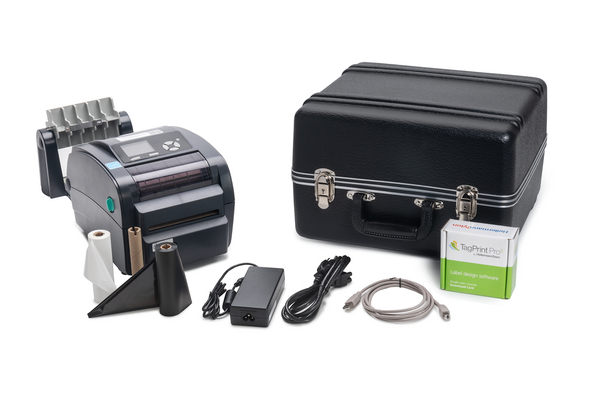

Content	One TT230SMC printer with cutter, label caddy, TagPrint® Pro label design software, black ribbon, white ribbon, and a high-quality hard-shell carrying case.
Description	HellermannTyton’s TT230 Series thermal transfer printers are designed for low- to medium-volume printing of thermal transfer labels and ShrinkTrak. They deliver optimal performance not found in other small desktop printers. This lightweight printer offers high speed, precision and flexible printing with the ability to print on most HellermannTyton labels and ShrinkTrak. Used in conjunction with TagPrint Pro, the printers offer error-free printing and seamless operation. Each kit contains one TT230SMC printer (556-00240), a carrying case (556-00231), one black and one white ribbon (TT822OUTSM) and (556-00190), label holder (556-00235) and TagPrint Pro 4.0 software (556-00035).
PART DESCRIPTION	TT230SMC KIT-PL-BK
Packaging Type	pack
Part No.	556-00256
Print Method	thermal transfer print
Print Resolution DPI	300dpi
Product family	TT230
Product family	Identification Systems
Short Desc.	TT230SMC Printer Kit with Cutter, 1/pkg
Technical Description	TT230SMC Kit
Type	TT230SMC KIT
UV Resistant	No

Height (imperial)	13.5"
Height (metric)	342.9mm
Length (imperial)	11.75"
Length (metric)	298.5mm
Max. Bundle Diameter (imperial)	0"
Min. Bundle Diameter (imperial)	0"
Width (imperial)	7.95"
Width (metric)	202mm

CE Certification	Yes
CSA Certified	No
Halogen Free	No
Material	PL
Material	Plastic (PL)
Max. Print Width	101.6mm
Max. Print Width	4"
Operating Temperature	+40°F to +104°F (+4°C to +40°C)
Printer Interfaces	RS232-C, Ethernet, USB v2.0 and Centronics
Printer Memory	8MB RAM
Prop65 Warning	No
REACH Conformity	Yes
ROHS compliant	Yes
UL File Number [Logo]	E178707 [cULus]
UL Listed (US and Canada)	Yes
UL Listed (US)	Yes
UL Recognized (US and Canada)	No
UL Recognized (US)	No
